EU Product - Kabel DisplayPort> Vga St/St - Cable - Digital/Display/Video
Introduction

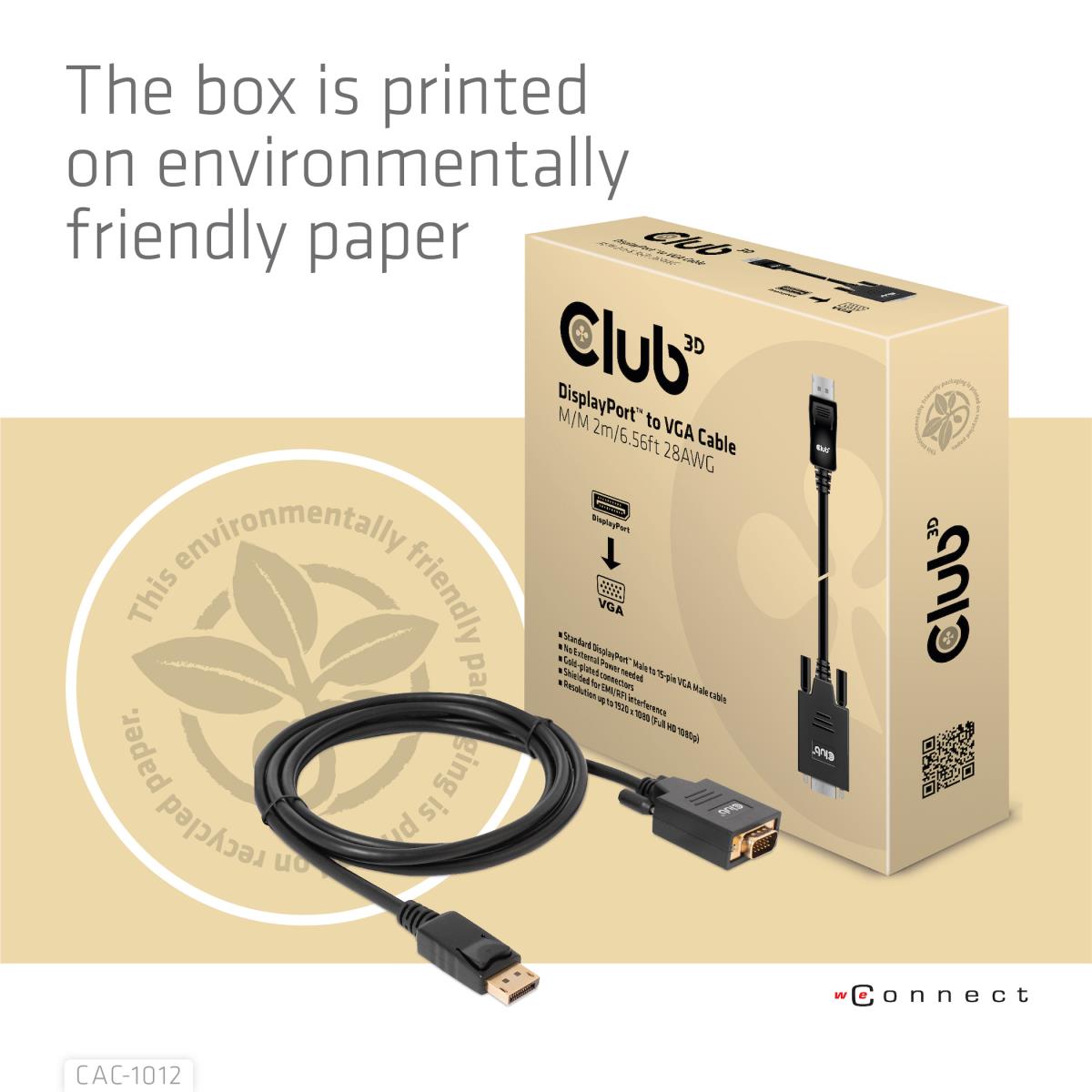

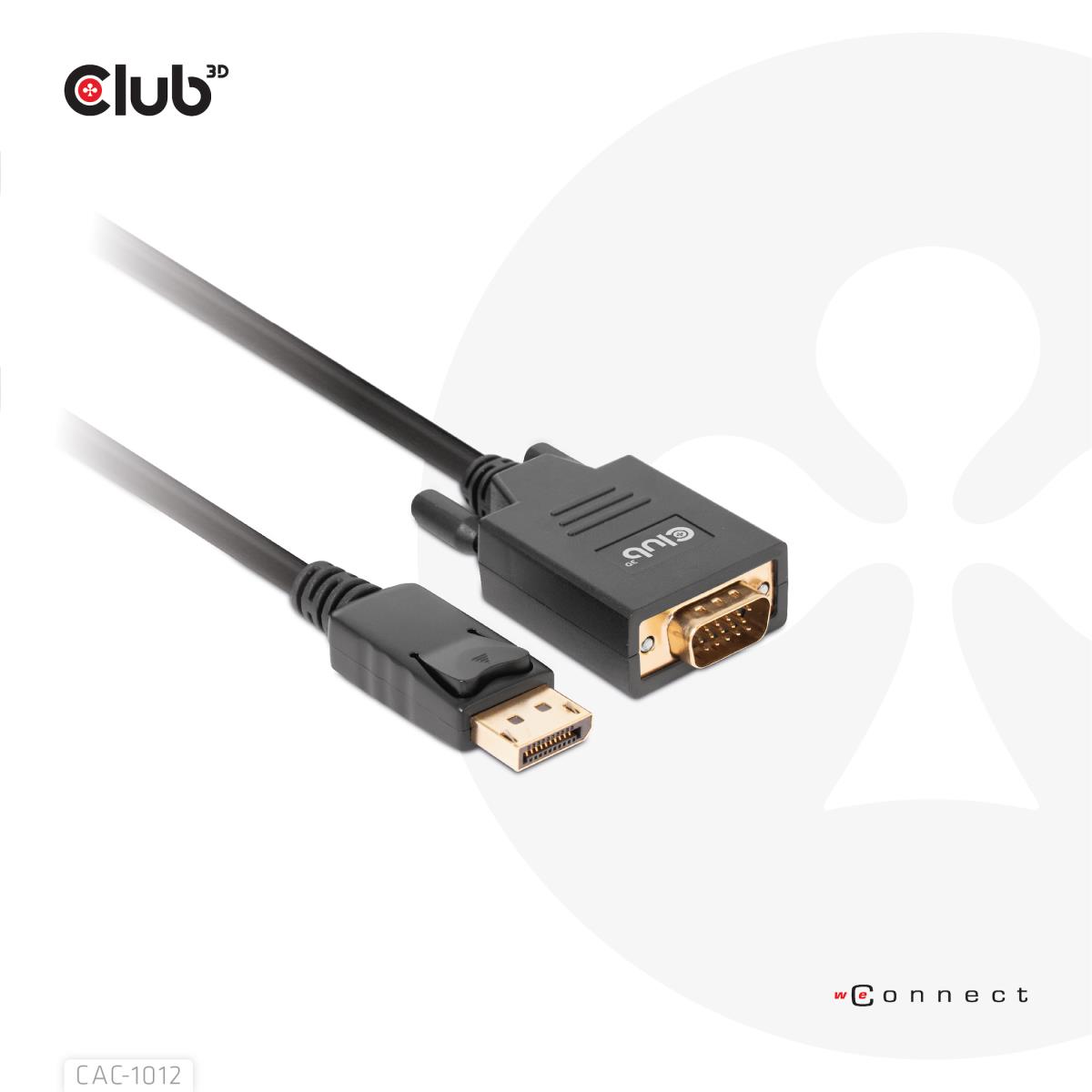

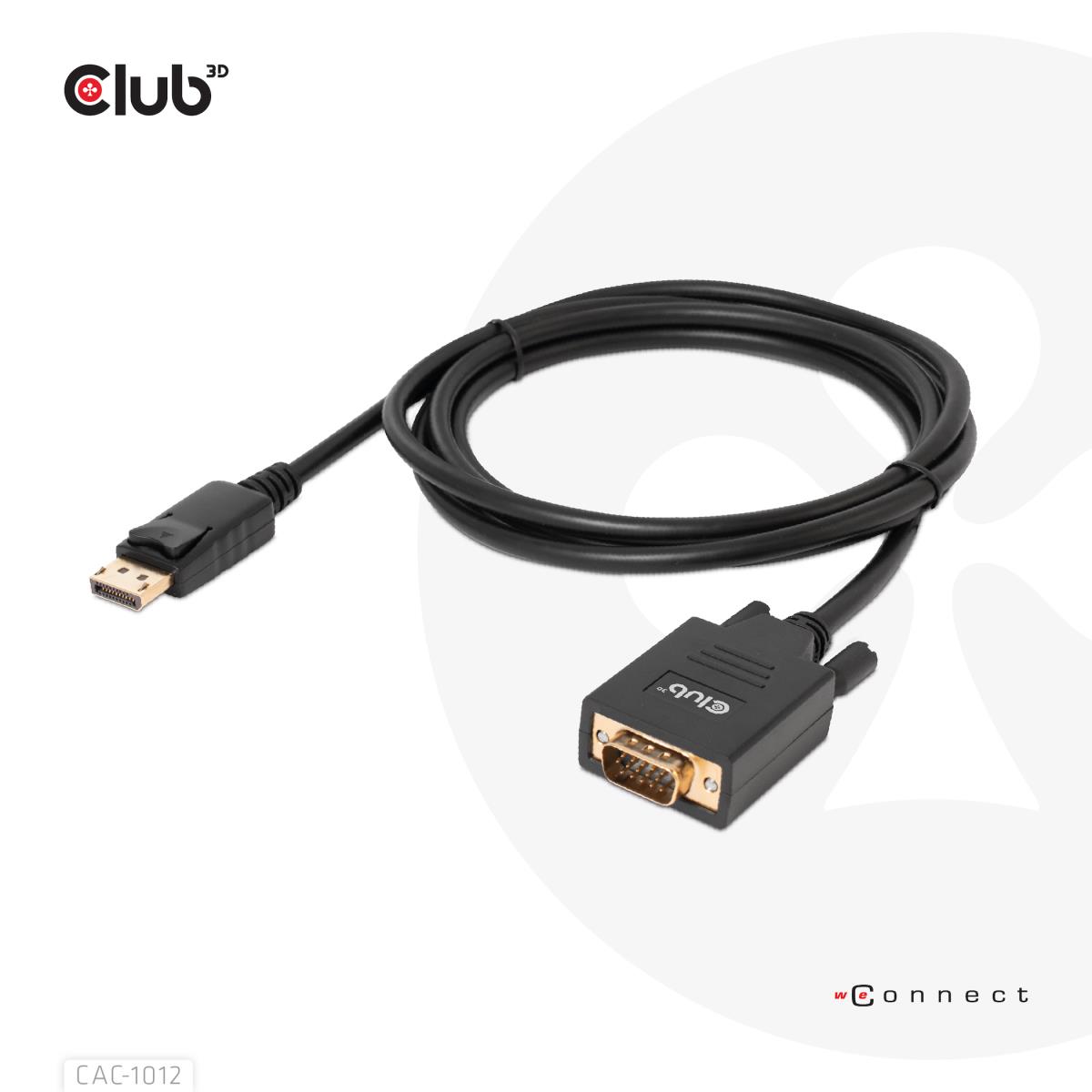

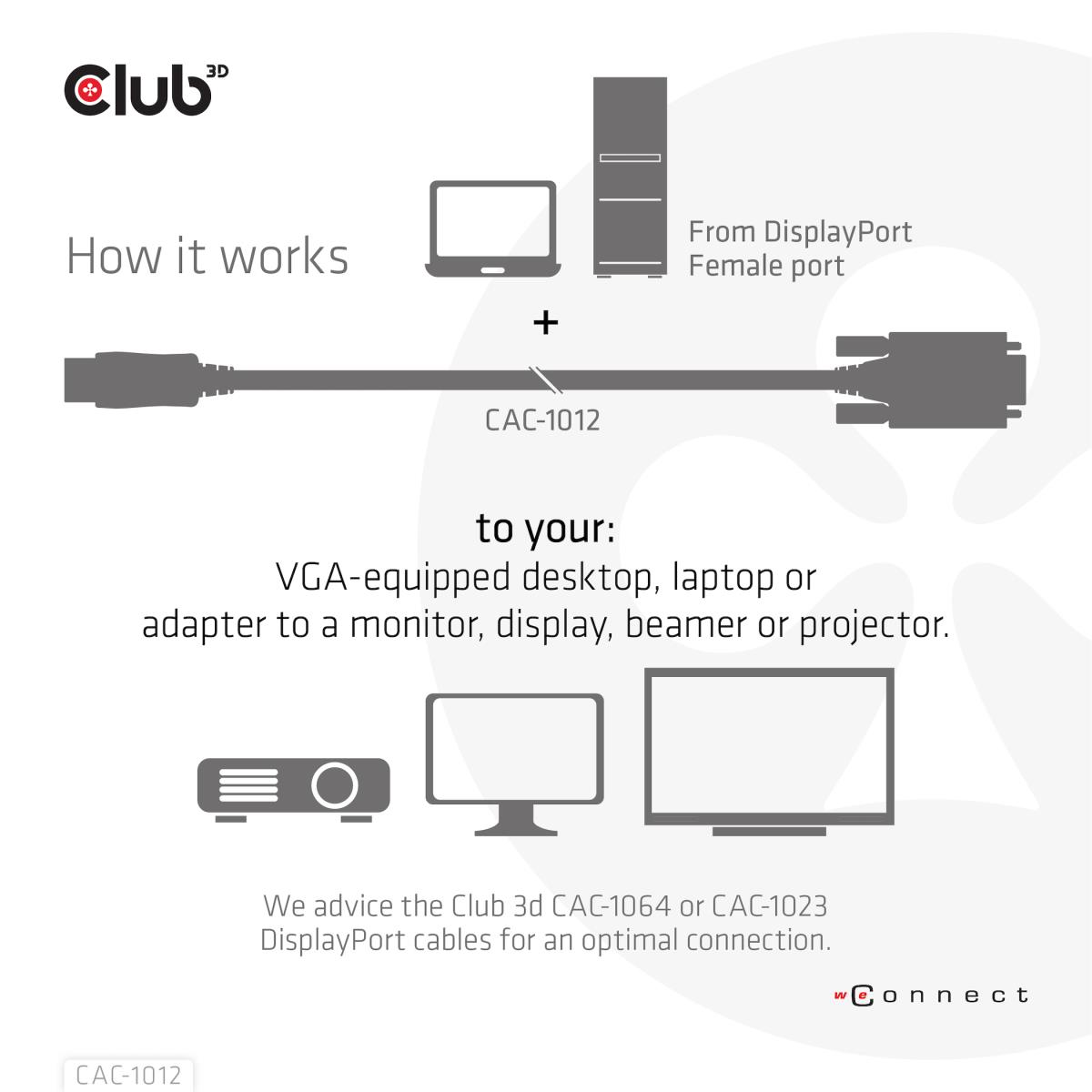

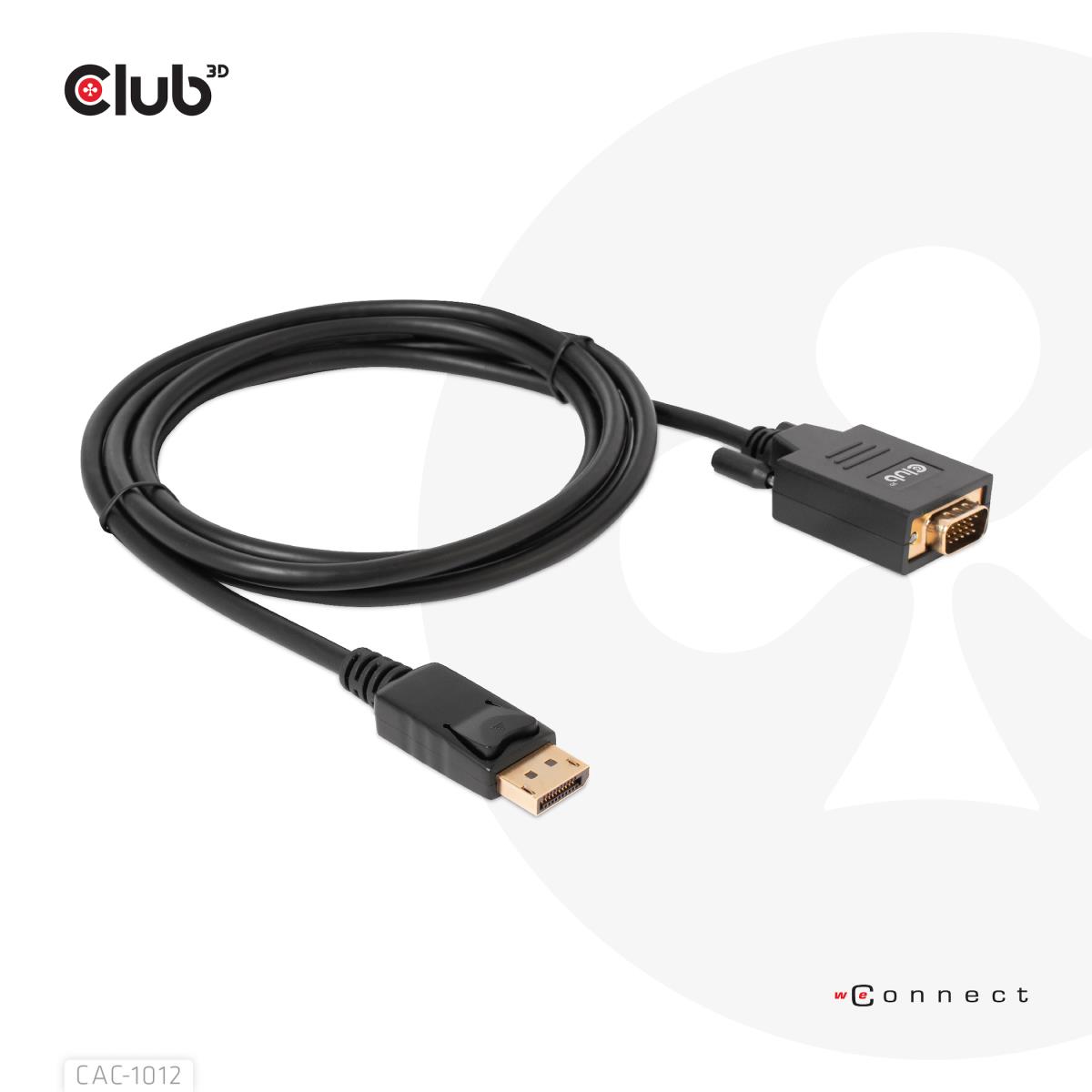

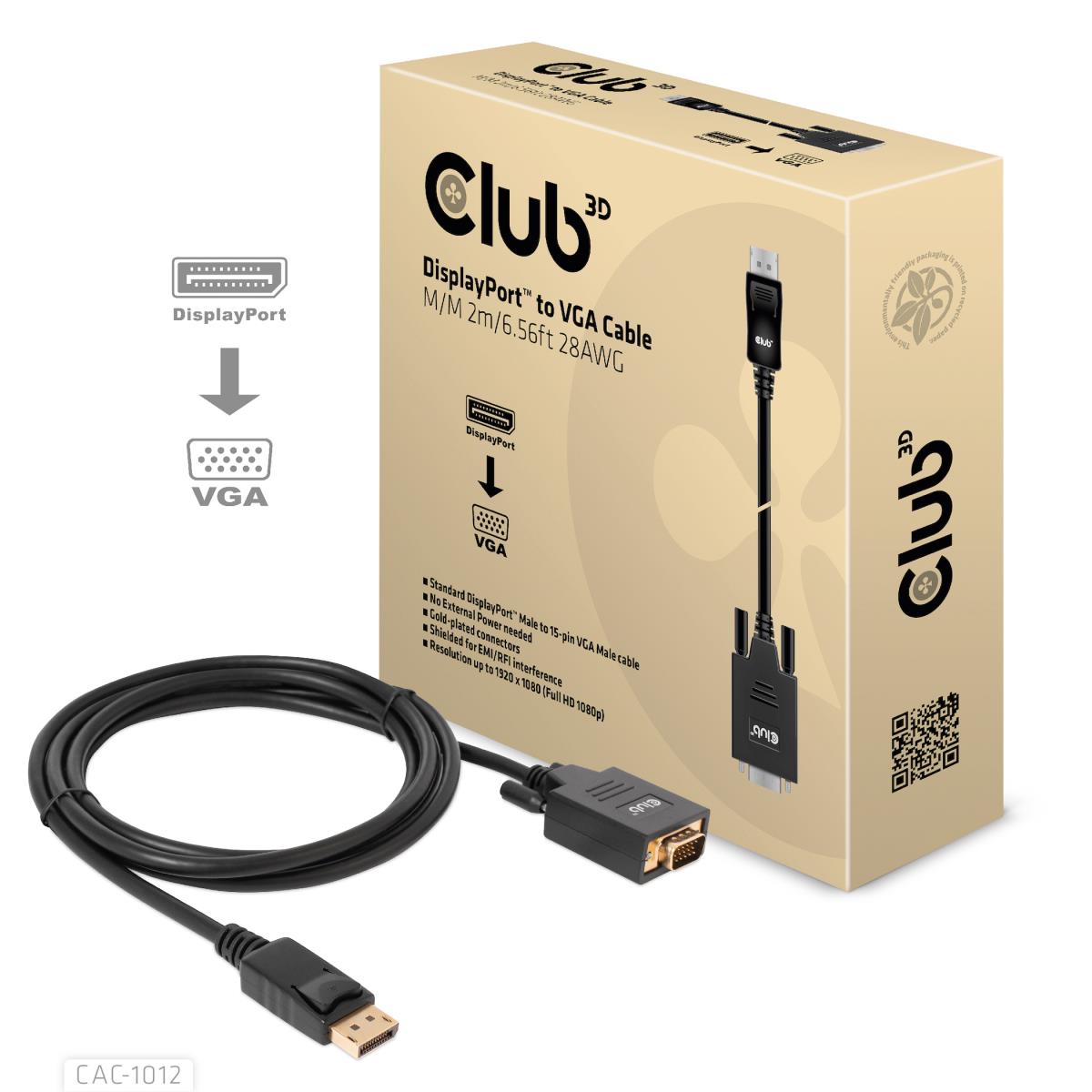

The Club 3D CAC-1012 DisplayPort™ to VGA Cable M/M 2m/6.56ft 28AWG links any DisplayPort™-equipped desktop, laptop or adapter to a monitor, display, beamer or projector with a 15-pin VGA Female port. Ideal for at home or work, the cable creates a reliable connection for anything from gaming to video projection and supports up to Full HD 1080p(max. resolution of 1920 x 1080). A Micro USB port is also provide for External Power. This quality DisplayPort™ to VGA cable provides superior performance thanks to the combined effect of its Gold plated connectors and 28 AWG conductors. Internal shielding provides reduced crosstalk, suppresses noise, and helps prevent electromagnetic interference (EMI) and radio frequency interference (RFI).Experience a reliable, high-quality connection with this convenient DisplayPort™ to VGA 2m/6.56ft cable.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |

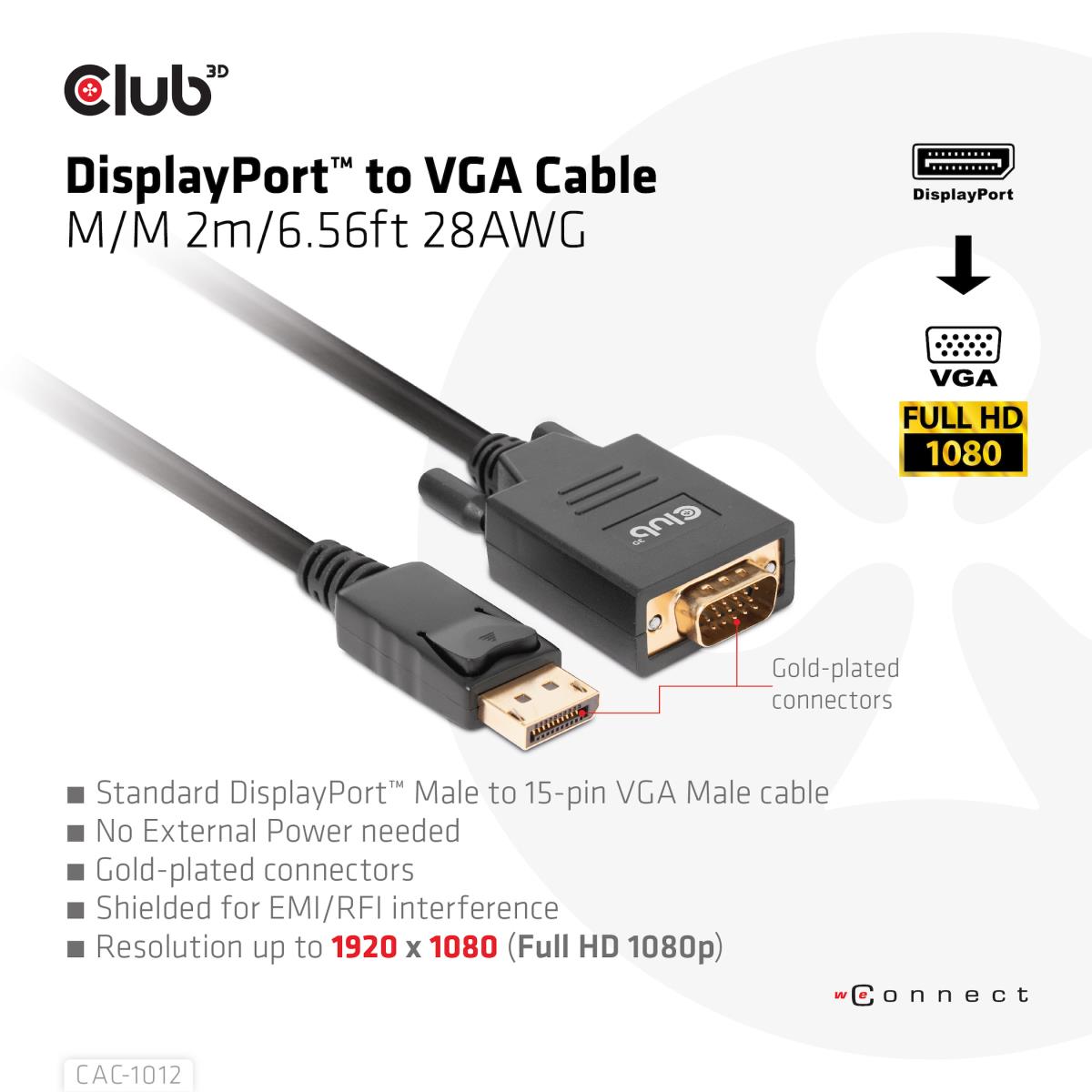

| Connector contacts plating | Gold |
| AWG wire size | 28 |
| Maximum resolution | 1920 x 1080 pixels |
| Plug and Play | Yes |
| Certification | ROHS, FCC, CE EMI |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable type | Round cable |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |
| Packaging composition | |
| Plastic packaging weight | 5 g |
| Paper/cardboard packaging weight | 45 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Weight & dimensions | |
| Weight | 98 g |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Package weight | 143 g |

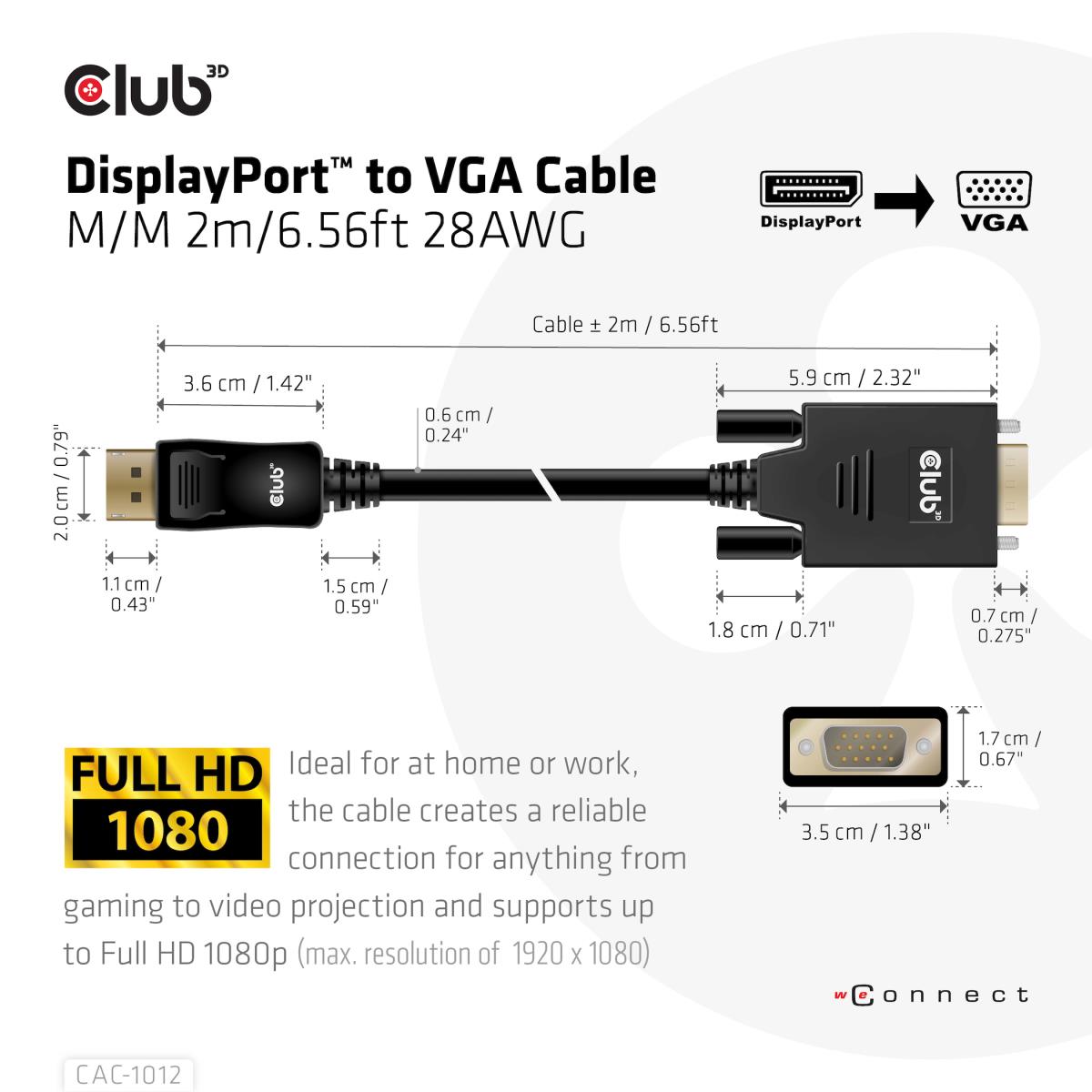

| Connector 1 dimensions (WxDxH) | 20 x 47 x 13 mm |
| Connector 2 dimensions (WxDxH) | 33 x 44 x 16 mm |
| Packaging data | |
| Package width | 145 mm |
| Package depth | 45 mm |
| Package height | 145 mm |
| Package type | Box |
| Package weight | 143 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Plastic packaging weight | 5 g |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
