EU Product - Kabel DisplayPort 1.4 - 1.4 Hbr3 8K - Cable - Digital/Display/Video
Introduction

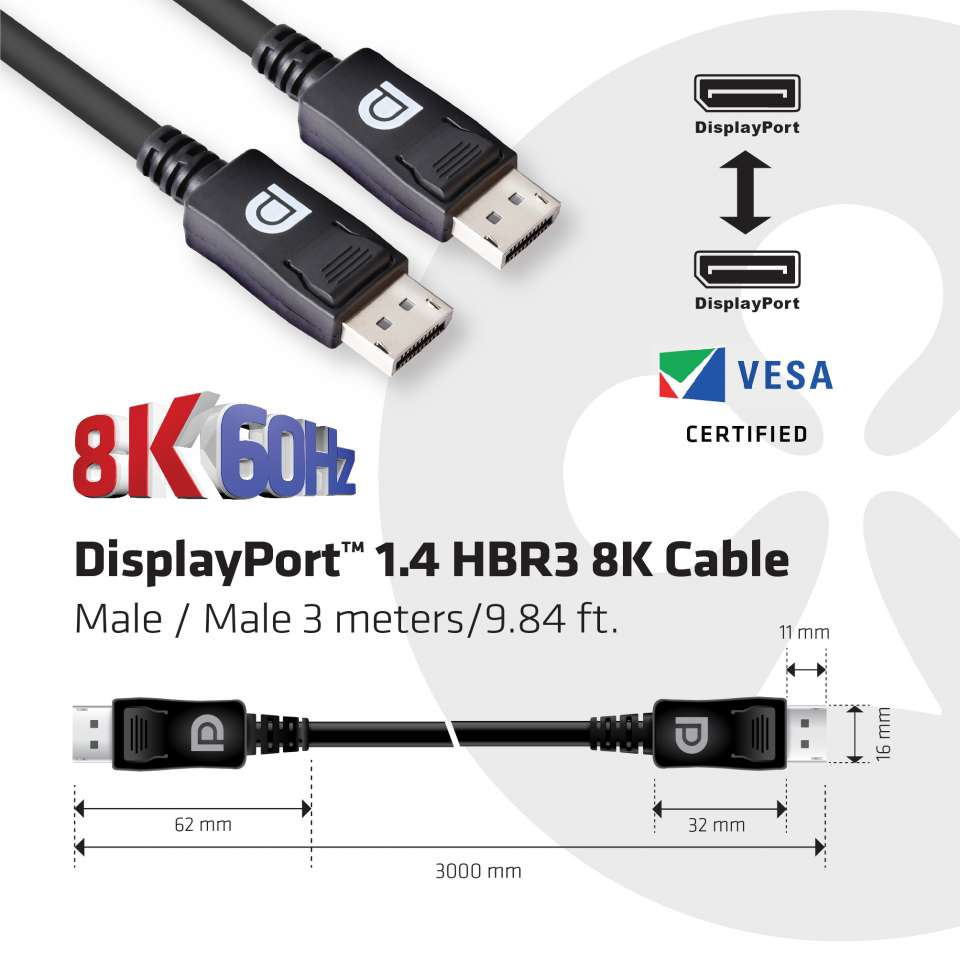

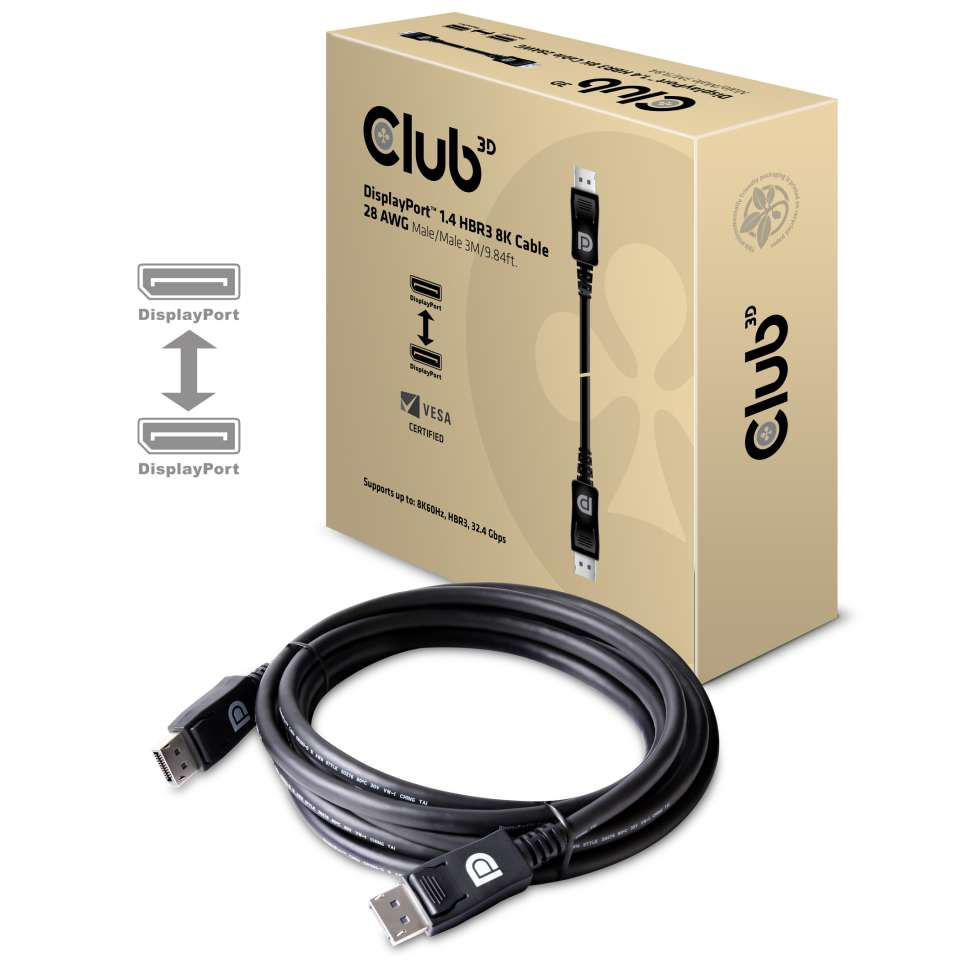

The Club 3D DisplayPort™ 1.4 HBR3 8K cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution
Monitor or other DisplayPort™ supported device. DisplayPort™ 1.4 adds support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.
It features locking DisplayPort™ connectors providing a secure, dependable connection. Simply press the built-in one-touch latch button to unlock the connector. The soft UltraFlex jacket protects the cable from bends and deformation damage.
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| AWG wire size | 28 |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| 3D | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320 |
| Supported video modes | 4320p |
| Plug and Play | Yes |
| Certification | Rohs, WEEE, CE |
| Maximum refresh rate | 60 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| Cable type | Round cable |
| Certificates | |
| Certification | Rohs, WEEE, CE |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 219 g |
| Package weight | 283 g |
| Package width | 175 mm |
| Package depth | 45 mm |
| Package height | 175 mm |
| Packaging data | |
| Package weight | 283 g |
| Weight | 219 g |
| Package width | 175 mm |
| Package depth | 45 mm |
| Package height | 175 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Plastic packaging weight | 4 g |
| Paper/cardboard packaging weight | 147 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 8544 4290 |
