EU Product - Kabel DisplayPort 1.2 - 1.2 HBR2 - Cable - Digital/Display/Video
Introduction

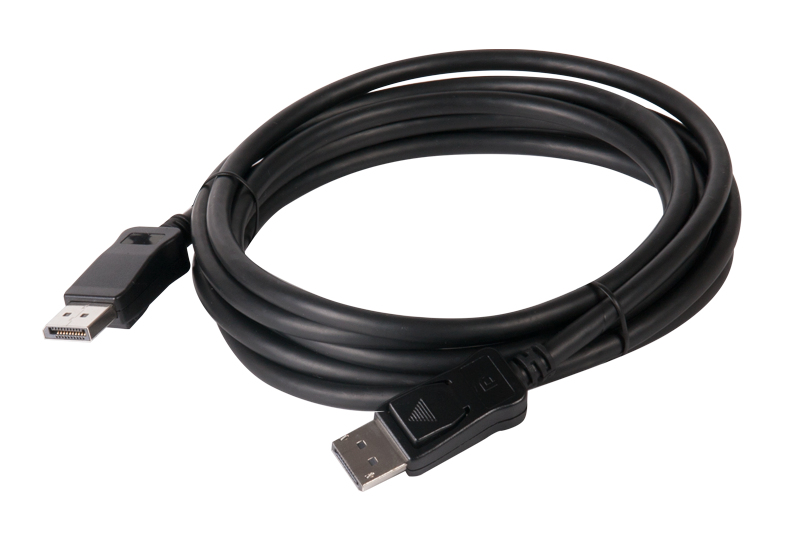

This 3Meter DisplayPort cable enables the connection of your DisplayPort supported device to a monitor or other DisplayPort supported device. It features locking DisplayPort connectors providing a secure, dependable connection. Simply press the built-in-one touch latch button to unlock the connector. The cable soft UltraFlex jacket protects from bends and deformation that can damage the cable.
Features
• DisplayPort 1.2 compatible - supports version 1.1a
• Computer resolutions up to 3840x2160 at 60Hz and 3D video
• Supports all HDTV resolutions including 1080p and 4K

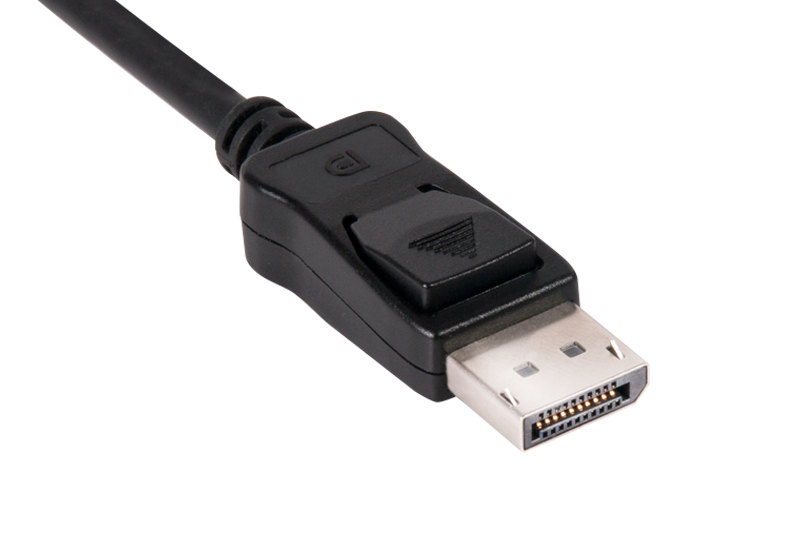

• Latching connectors for a secure, reliable connection
• Up to 5.4 Gbps per lane throughput - 21.6 Gbps total
*Please note, features are subject to the capabilities of the computer and
graphics solution
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| Product colour | Black |

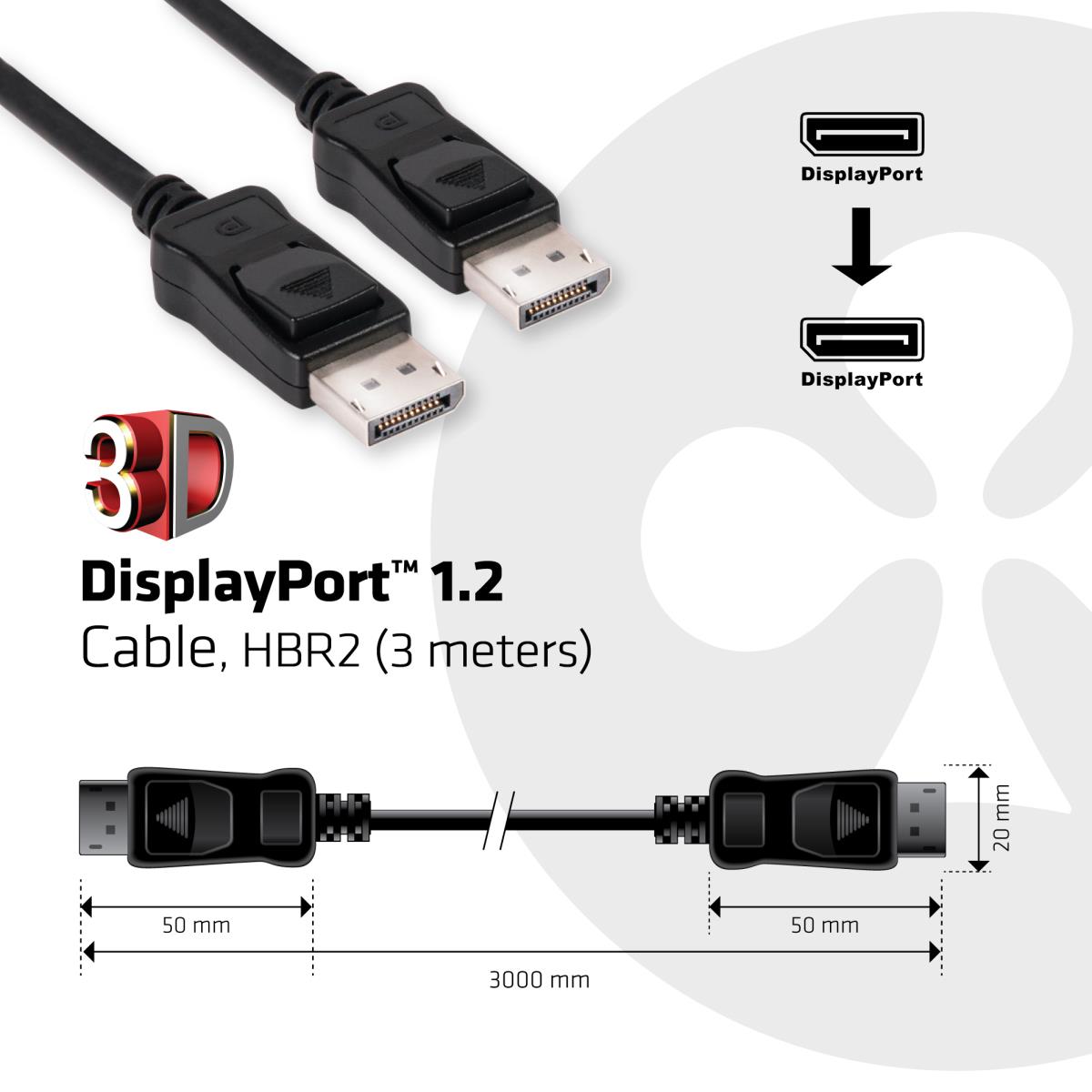

| Cable length | 3 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| DisplayPort version | 1.2 |
| Data transfer rate | 21.6 Gbit/s |
| Bandwidth | 21600 MB/s |
| 3D | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| Certification | ROHS, FCC, and CE EM |
| Certificates | |
| Certification | ROHS, FCC, and CE EM |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 160 g |
| Package width | 45 mm |
| Package depth | 139 mm |
| Package height | 255 mm |
| Packaging data | |
| Weight | 160 g |
| Package width | 45 mm |
| Package depth | 139 mm |
| Package height | 255 mm |
| Package type | Box |
| Plastic packaging weight | 0 g |
| Paper/cardboard packaging weight | 54 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Package type | Box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
