EU Product - DisplayPort-Kabel - Mini DisplayPort m zu - Cable - Digital/Display/Video
Introduction

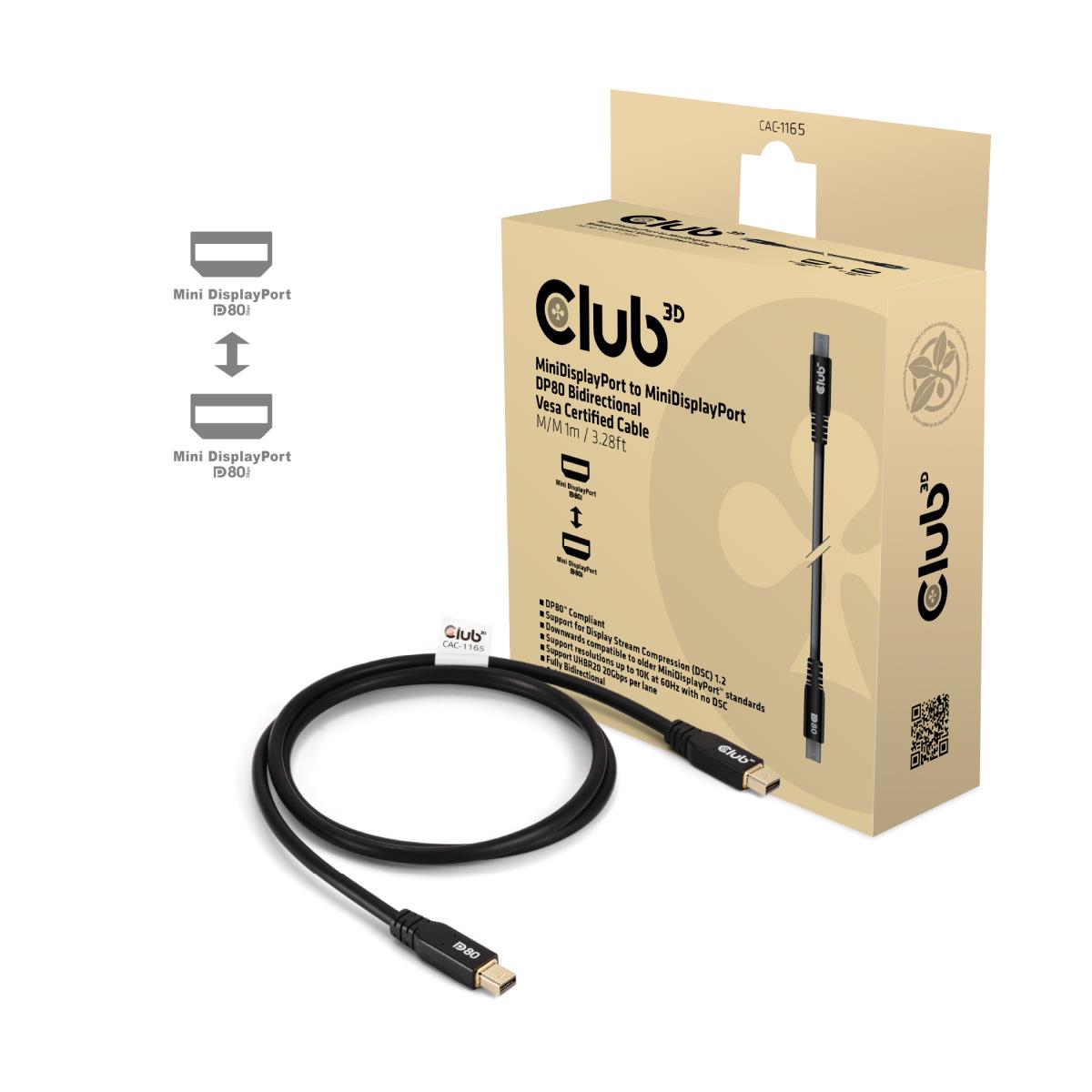

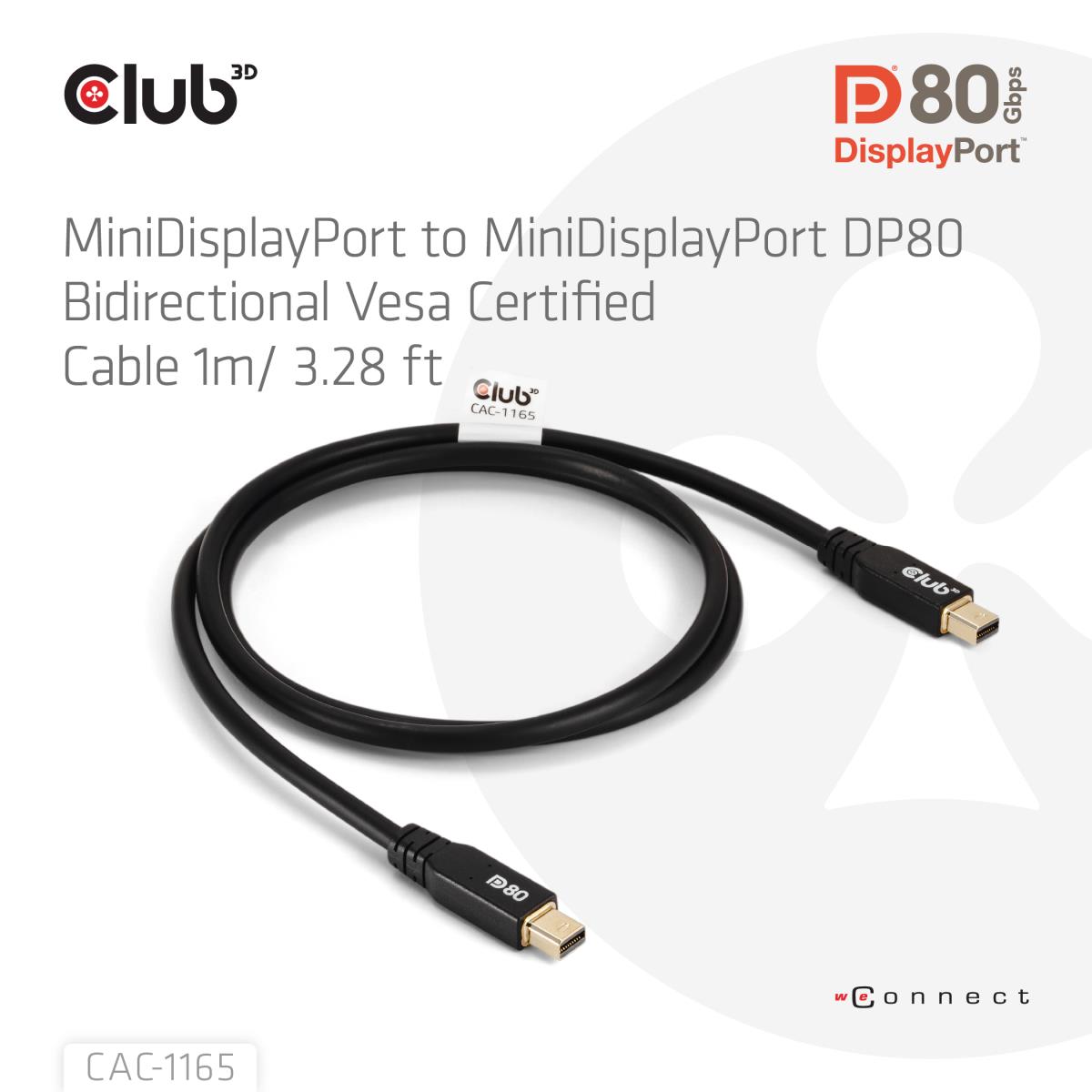

The Club 3D CAC-1165 MiniDisplayPort to MiniDisplayPort DP 80 Coaxial Cable Vesa Certified Cable , 4K240Hz, 8K60Hz or 10K60Hz M/M 1 m/3.28ft enables the connection of your MiniDisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other MiniDisplayPort™ supported device. MiniDisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32. It features miniDisplayPort™ connector providing NEW contact fingers special designed for these high speeds. The soft UltraFlex jacket protects the cable from bends and deformation damage.
Specifications
| Features | |
|---|---|
| Product colour | Black |
| Cable length | 1 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| DisplayPort version | 2.1 |
| Data transfer rate | 80 Gbit/s |
| Maximum resolution | 10240 x 4320 pixels |
| Supported graphics resolutions | 7680 x 4320, 10240 x 4320 |
| Supported video modes | 2160p, 4320p |
| Plug and Play | Yes |
| Maximum refresh rate | 240 Hz |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Display Stream Compression (DSC) | Yes |
| Display Stream Compression (DSC) version | 1.2 |
| Cable type | Round cable |
| Weight & dimensions | |
| Weight | 48 g |
| Package weight | 98 g |
| Package width | 1456 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Packaging data | |
| Package weight | 98 g |
| Weight | 48 g |
| Package width | 1456 mm |
| Package depth | 145 mm |
| Package height | 45 mm |
| Package type | Hanging box |
| Plastic packaging weight | 50 g |
| Paper/cardboard packaging weight | 178 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Packaging content | |
| Package type | Hanging box |
| Technical details | |
| Harmonized System (HS) code | 8544 4290 |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
