EU Product - HDMI 2.0 4K60Hz RedMere Kabel - Cable - Digital/Display/Video
Introduction

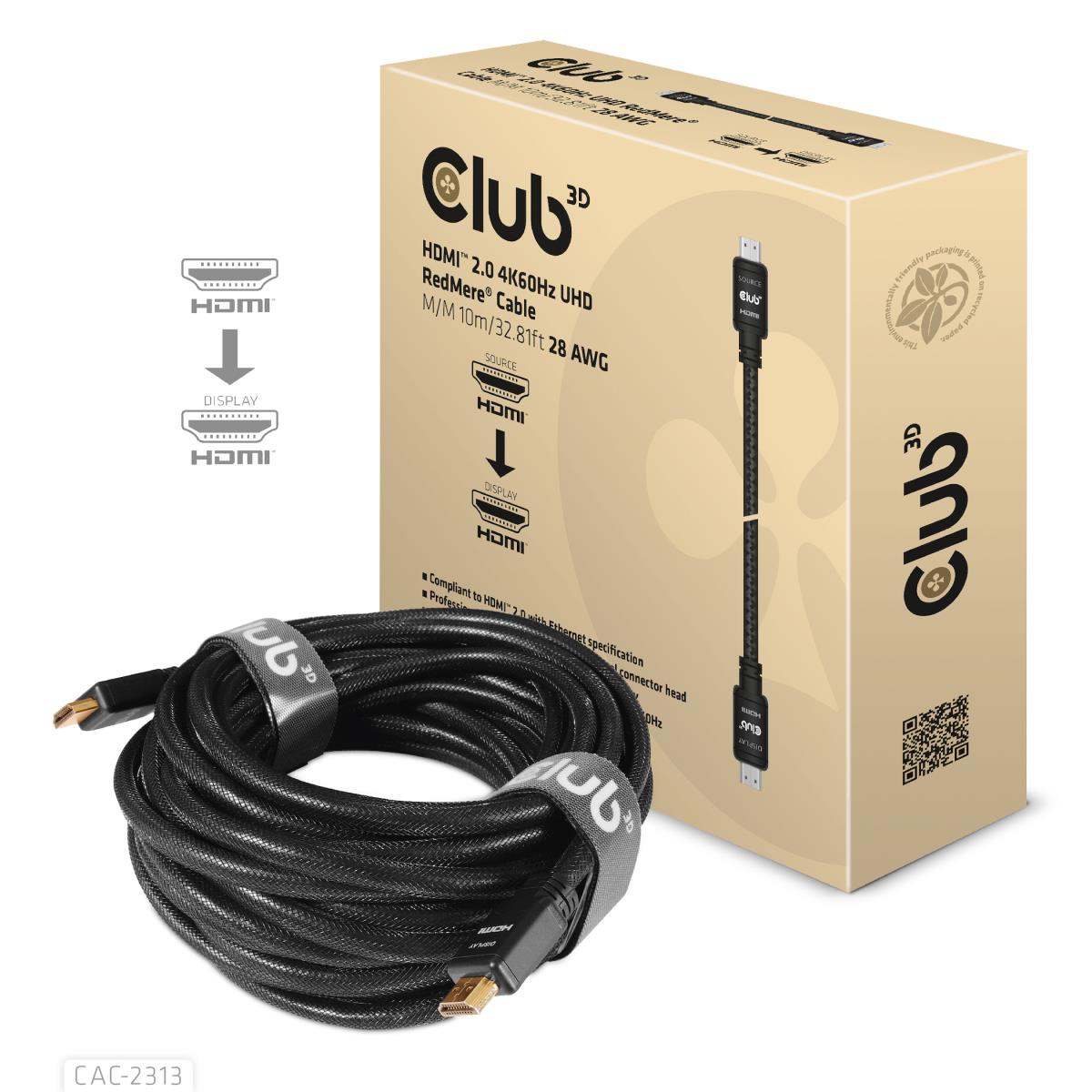

CAC-2313 - The Club 3D HDMI™ 4K60Hz UHD RedMere® Cable enables the connection of your HDMI™ supported Gaming PC or Laptop to an (Ultra) High Definition Monitor or other HDMI™ supported device.
Although the cable is 10 meters / 32.8 feet long, it fully supports the HDMI™ 2.0 with Ethernet specification, ensuring that video up to 4K UHD, 4096x2160p at 60Hz is supported, as well as audio and data streams.
RedMere® Technology
The CAC-2313 contains Active Chips with HDMI™ in-cable equalisation technology, with advanced signal processing allowing to support wide band data across relative thin and long cables while maintaining compatibility with the next generation of HDMI™ 2.0 devices.

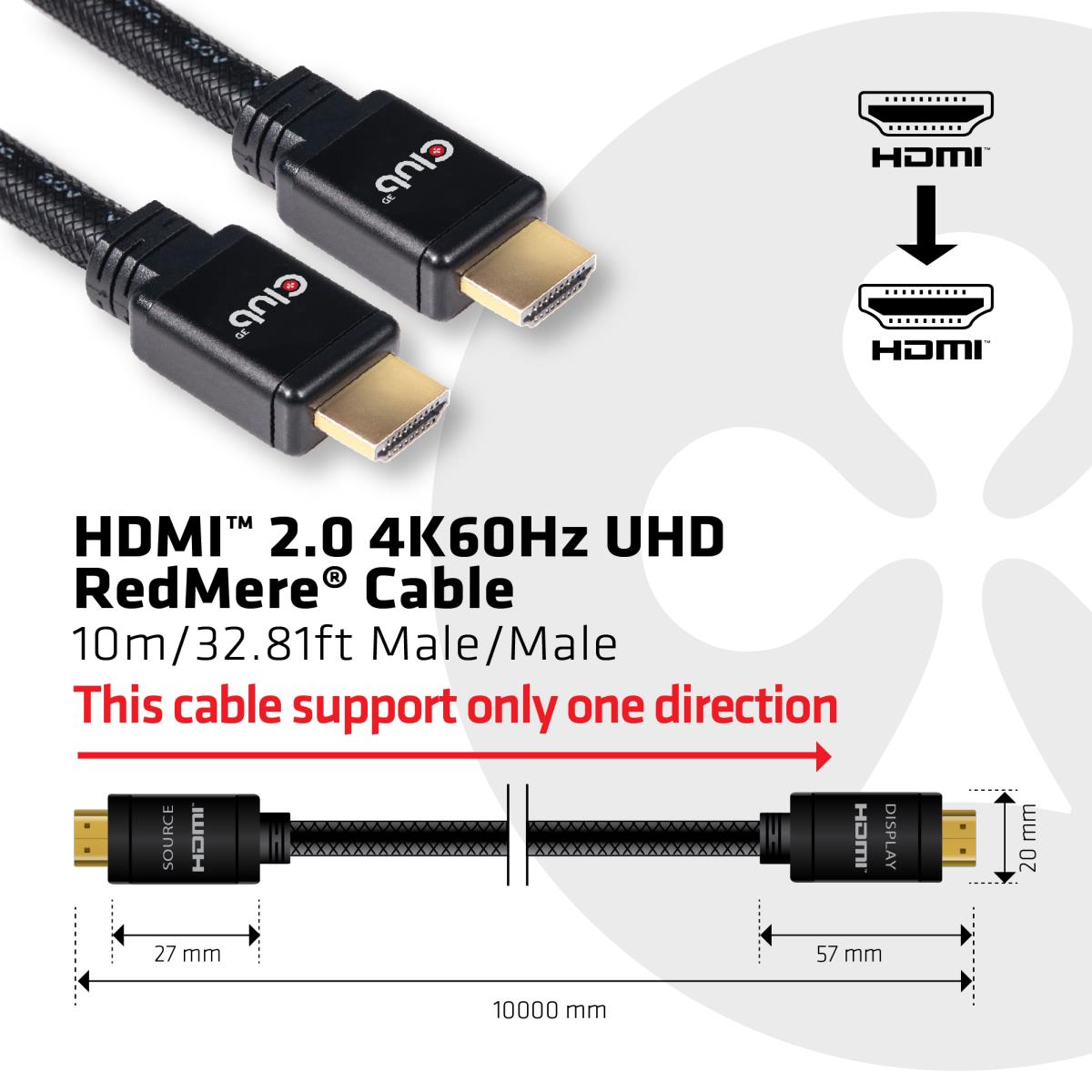

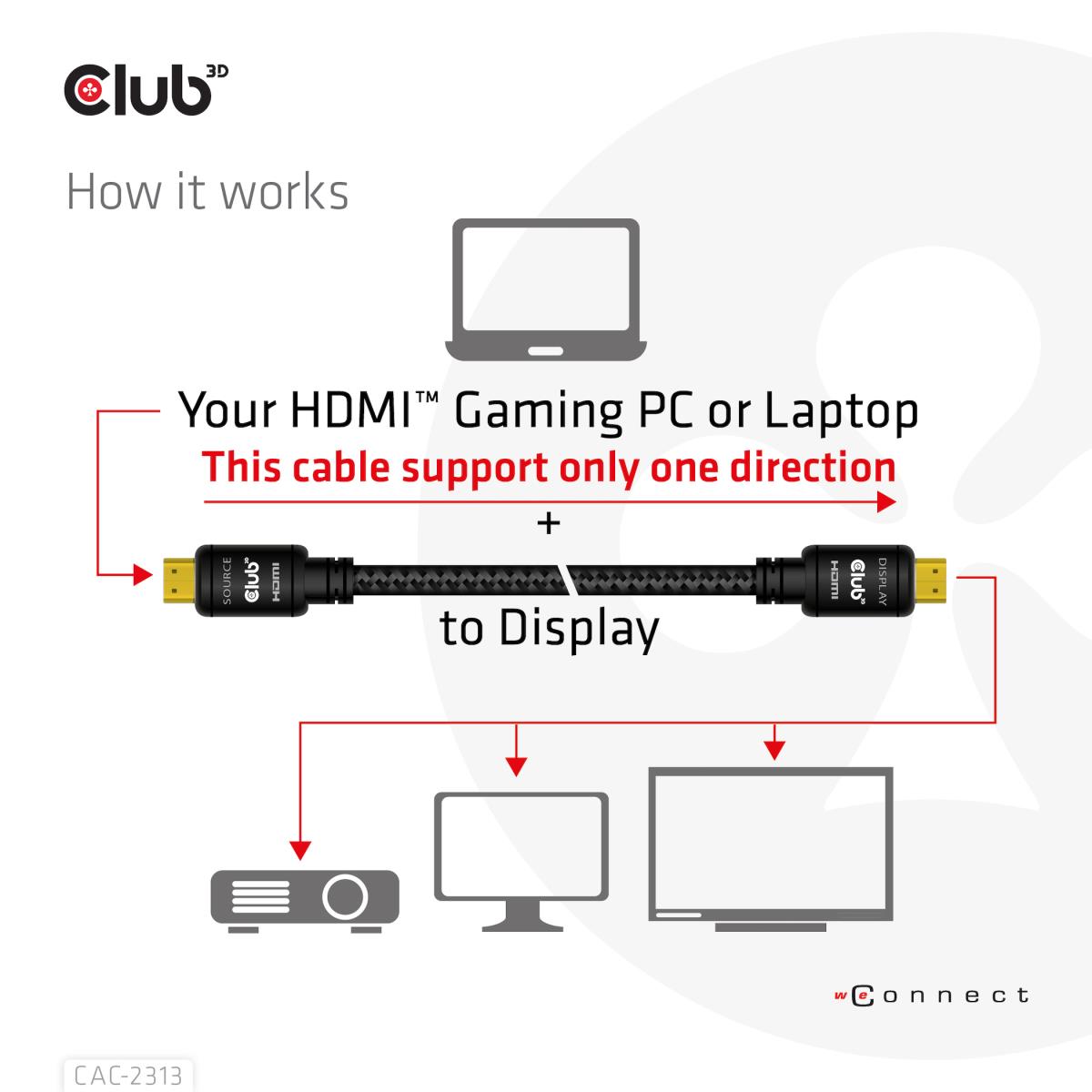

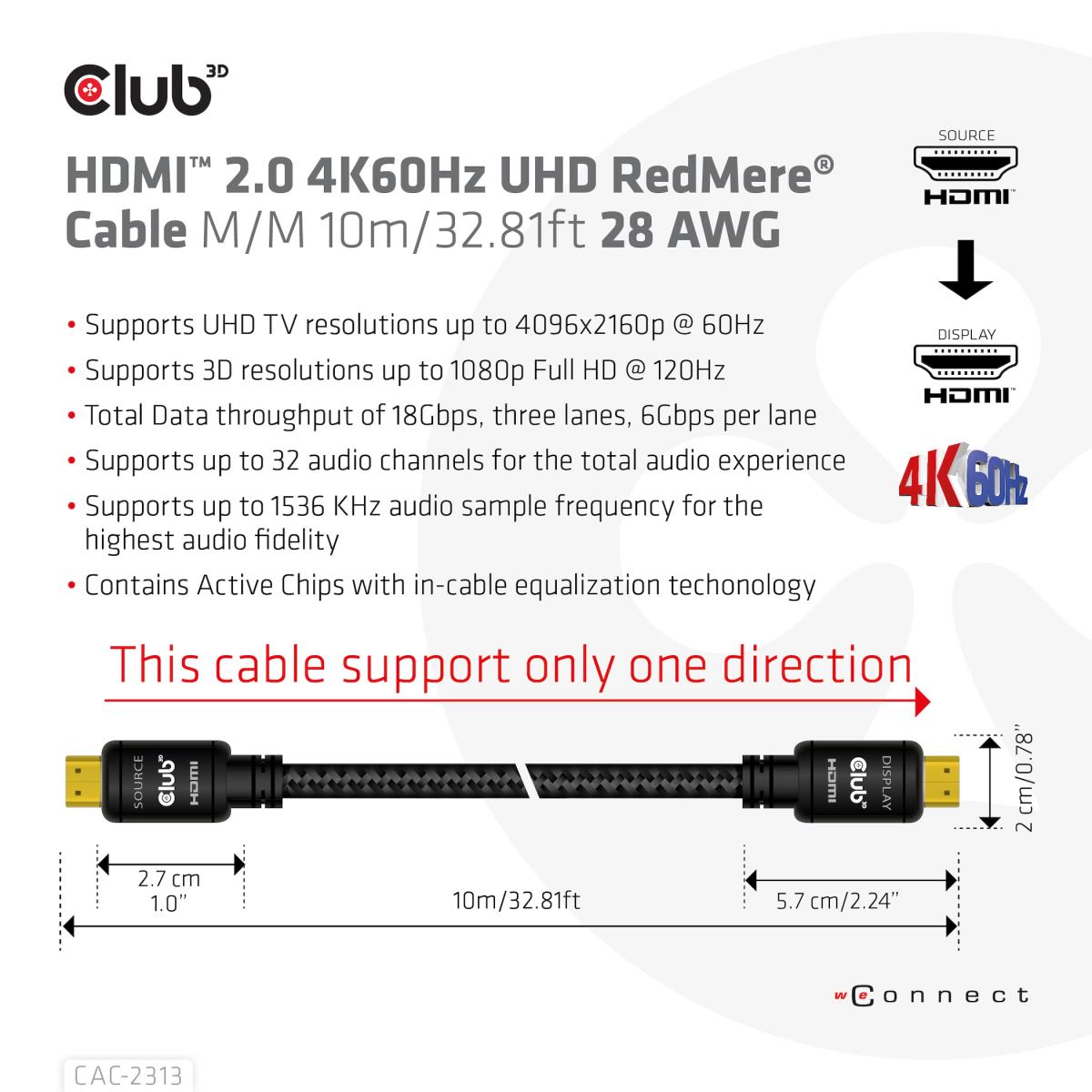

This cable has a Source- and Display Side and work only in one direction.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Cable length | 10 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |

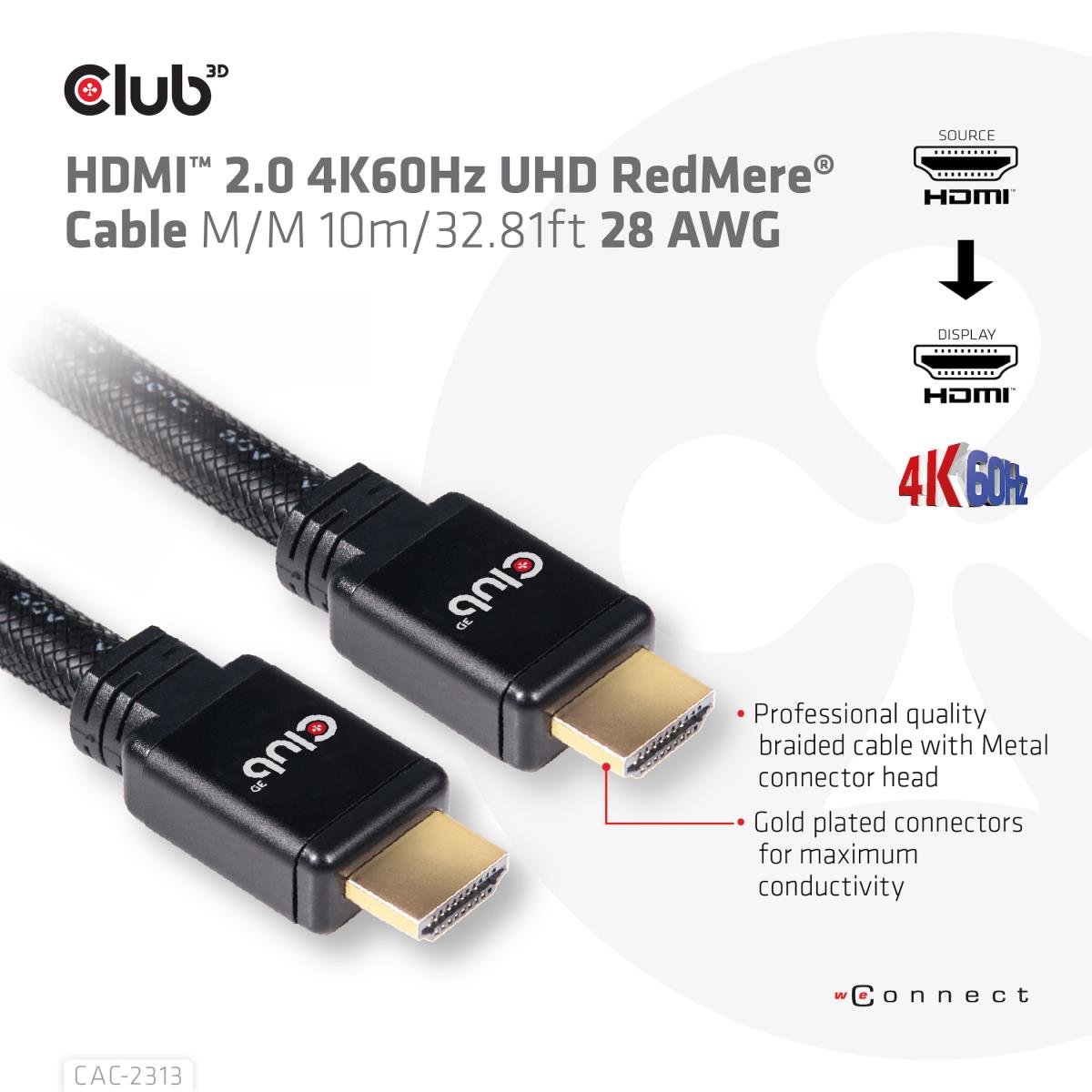

| Connector contacts plating | Gold |
| HDMI version | 2.0 |
| Data transfer rate | 18 Gbit/s |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 4096 x 2160 |
| Supported video modes | 1080p, 2160p |
| Plug and Play | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Cable type | Round cable |
| Certification | ROHS, FCC, CE EMI |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Certification | ROHS, FCC, CE EMI |
| Weight & dimensions | |
| Weight | 578 g |
| Package weight | 690 g |
| Package width | 210 mm |
| Package depth | 75 mm |
| Package height | 210 mm |

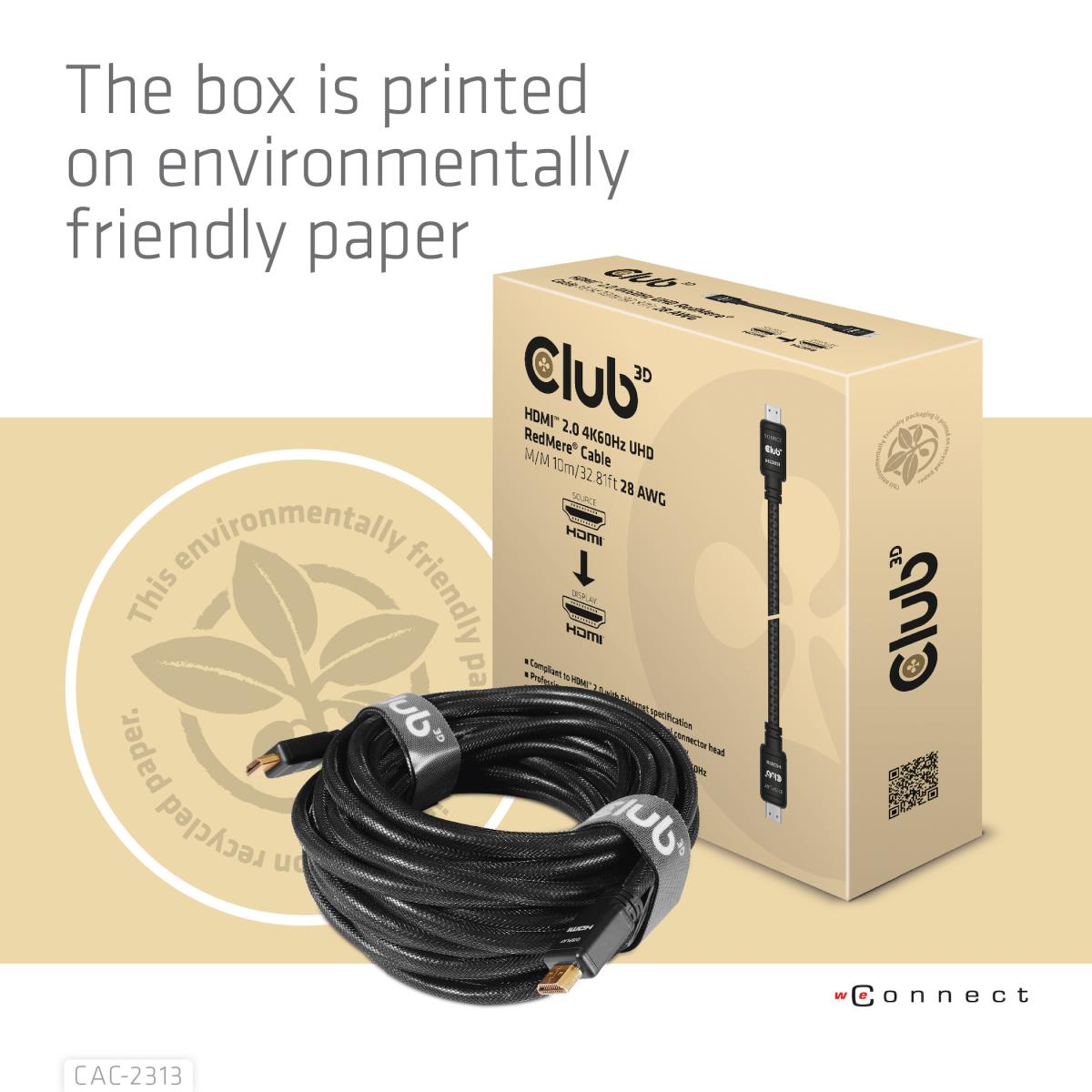

| Package type | Box |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 690 g |
| Package width | 210 mm |
| Package depth | 75 mm |
| Package height | 210 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging composition | |
| Plastic packaging weight | 7 g |
| Paper/cardboard packaging weight | 95 g |
| Total plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Technical details | |
| Plastic packaging weight | 7 g |
| Logistics data | |
| Harmonized System (HS) code | 8544 4290 |
