6FT USB C TO DISPLAYPORT 1.4
Introduction
USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3

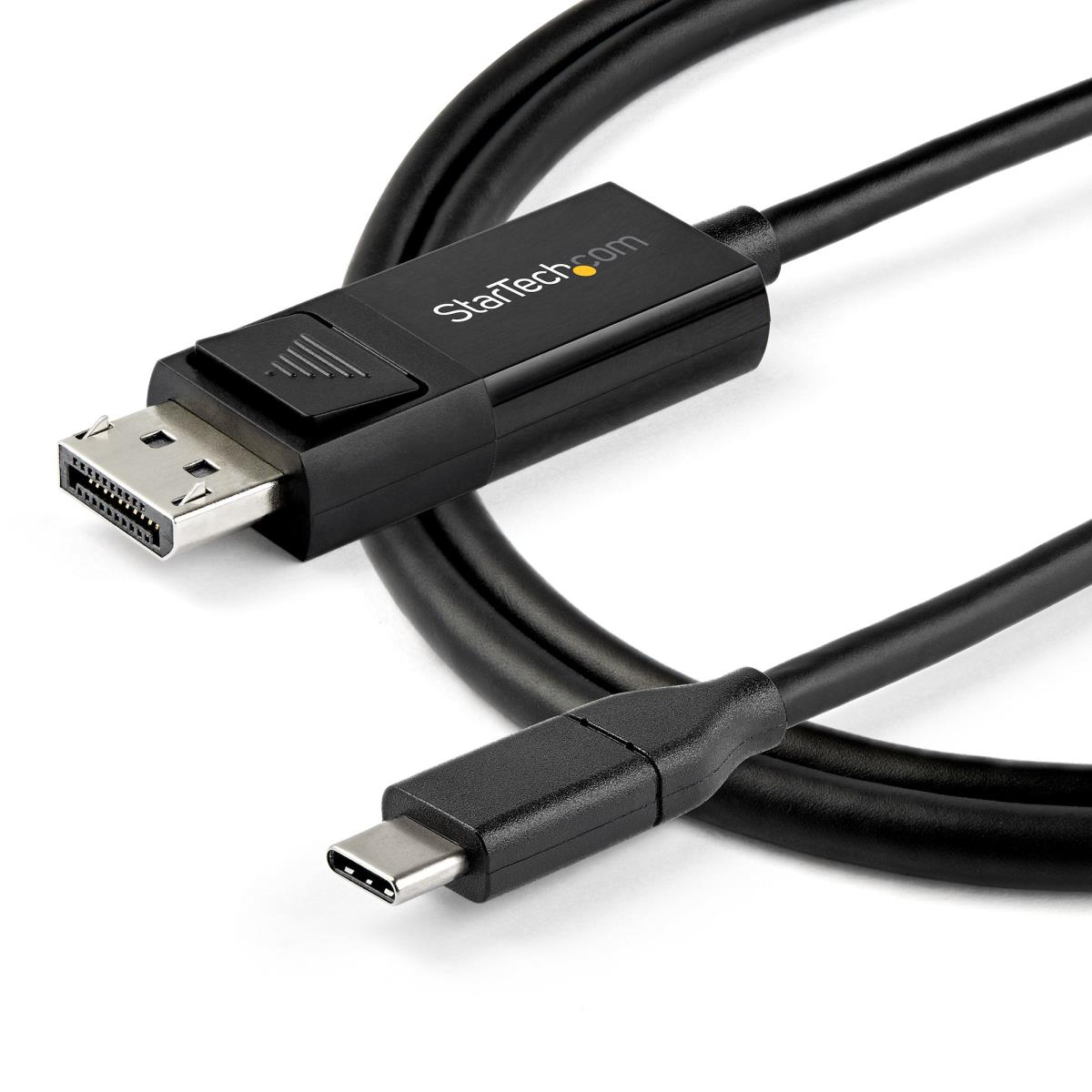

This USB-C™ to DisplayPort™ 1.4 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 60Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
• Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
• This cable is not compatible with the Surface Dock 2.
Specifications
| Features | |
|---|---|
| Chipset | Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2 |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
| Weight | 79 g |
| Package width | 122 mm |
| Package depth | 130 mm |
| Package height | 29 mm |
| Package weight | 85 g |
| Packaging data | |
| Package width | 122 mm |
| Package depth | 130 mm |
| Package height | 29 mm |
| Package weight | 85 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 328 mm |
| Master (outer) case length | 512 mm |
| Master (outer) case height | 210 mm |
| Products per master (outer) case | 80 pc(s) |
| Harmonized System (HS) code | 84733080 |
