EU Product - 4K Displypor 1.4 o HDMI
Introduction

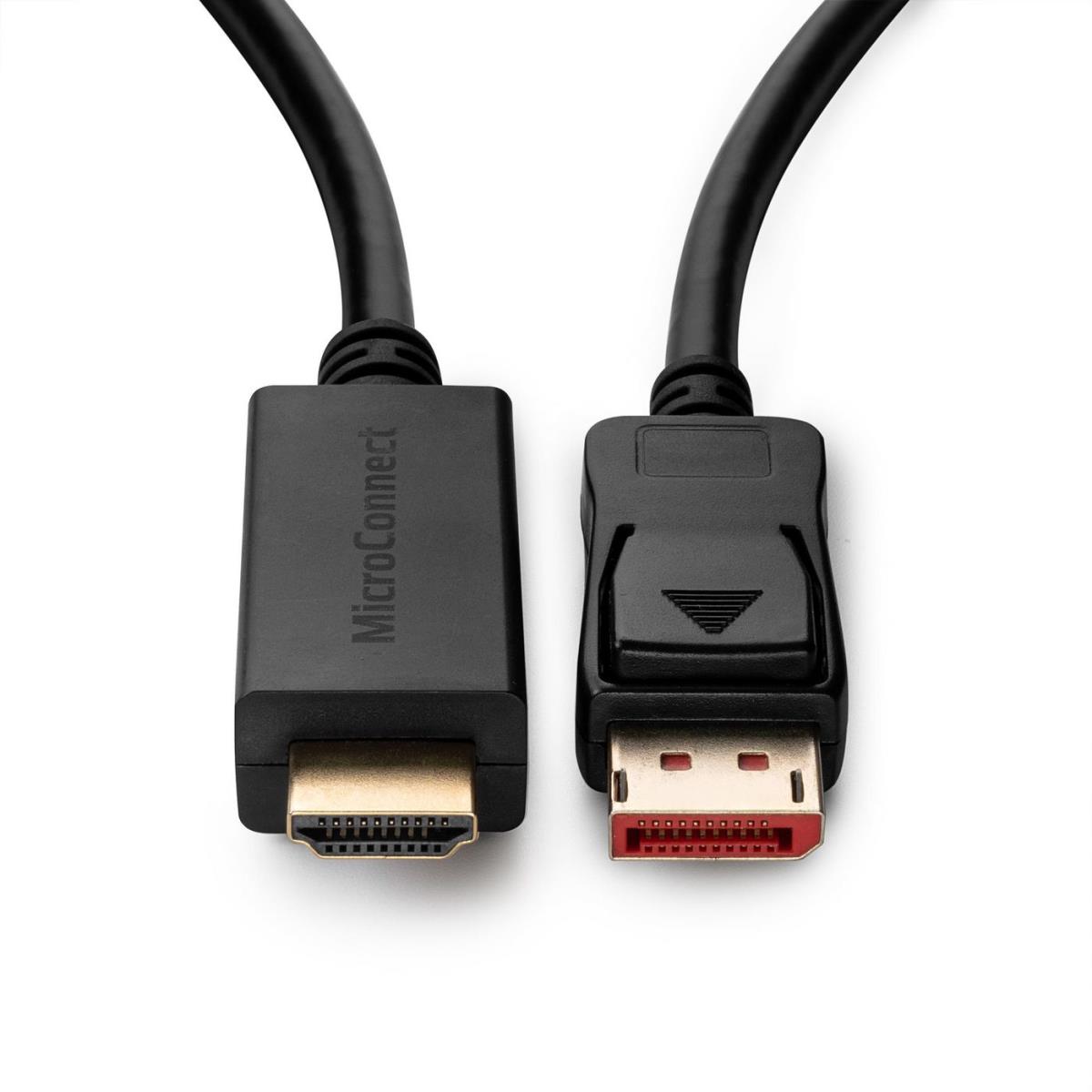

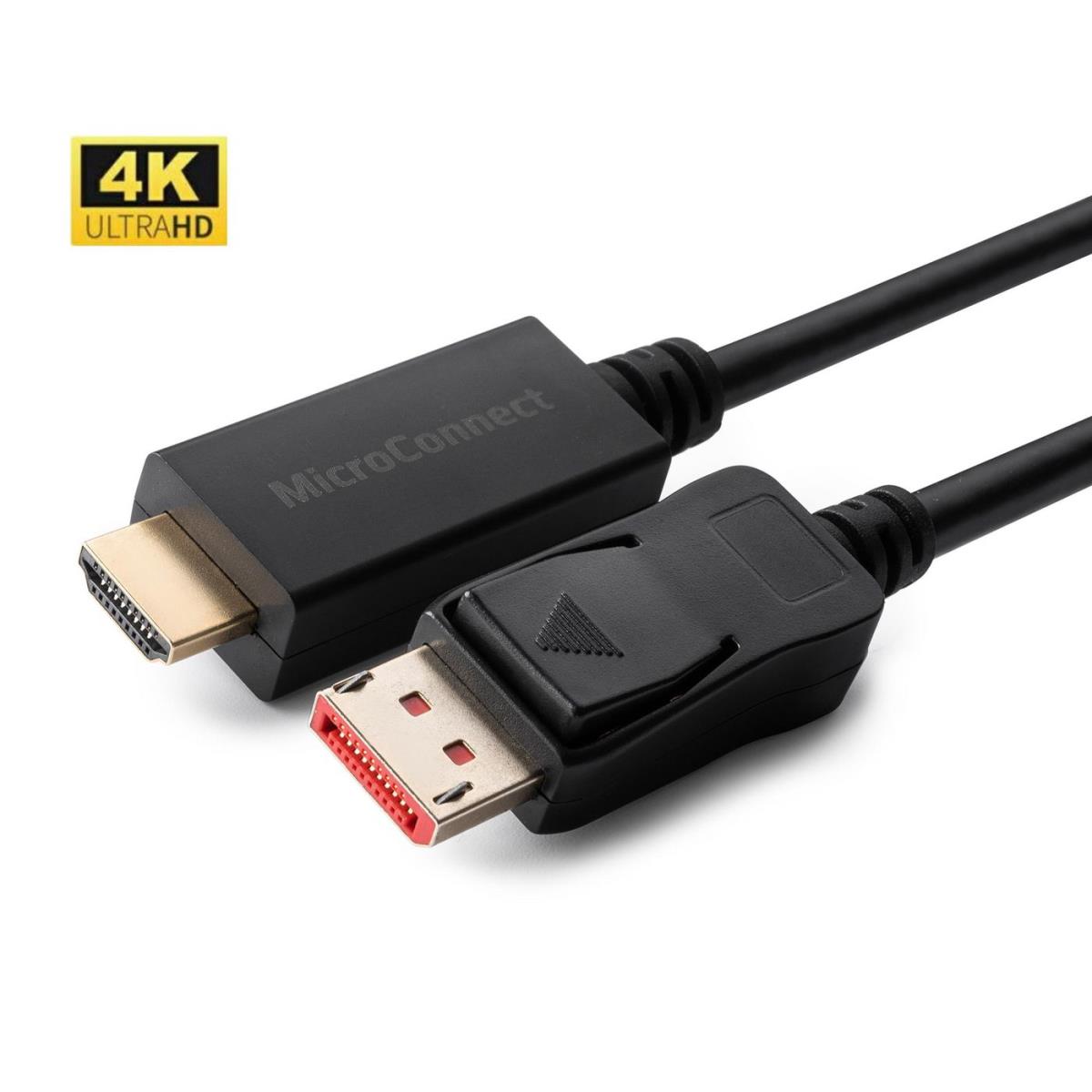

This high performance DisplayPort to HDMI digital HD cable enables you to convert DisplayPort signals to HDMI signals. It could be for transmitting HD video signals from a computer to a monitor with HDMI interface.
Specifications
| Features | |
|---|---|
| Chipset | SCDH60V |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Number of shielding layers | 3 |
| Bandwidth | 225 MHz |
| Cable length | 2 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Copper |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 30 |
| Data transfer rate | 18 Gbit/s |
| Bandwidth | 18000 MB/s |
| 3D | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| HDCP | Yes |
| Plug and Play | Yes |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.4/2.2 |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Certificates | |
| Compliance certificates | RoHS |
| Other features | |
| Width | 269 mm |
| Height | 24 mm |
| Depth | 209 mm |
| Weight & dimensions | |
| Width | 269 mm |
| Height | 24 mm |
| Depth | 209 mm |
| Cable diameter | 6 mm |
| Weight | 120 g |
| Package width | 269 mm |
| Package depth | 209 mm |
| Package height | 24 mm |
| Package weight | 150 g |
| Packaging data | |
| Package width | 269 mm |
| Package depth | 209 mm |
| Package height | 24 mm |
| Package weight | 150 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compliance certificates | RoHS |
