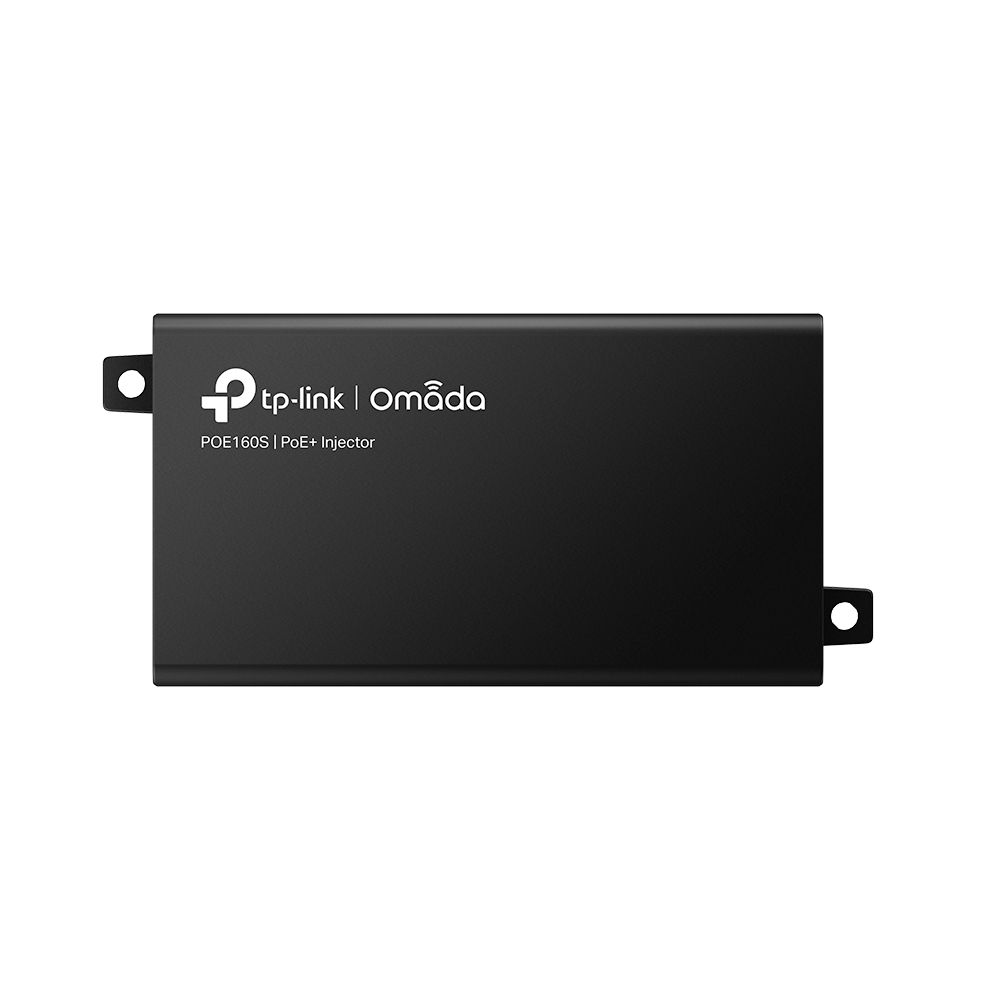

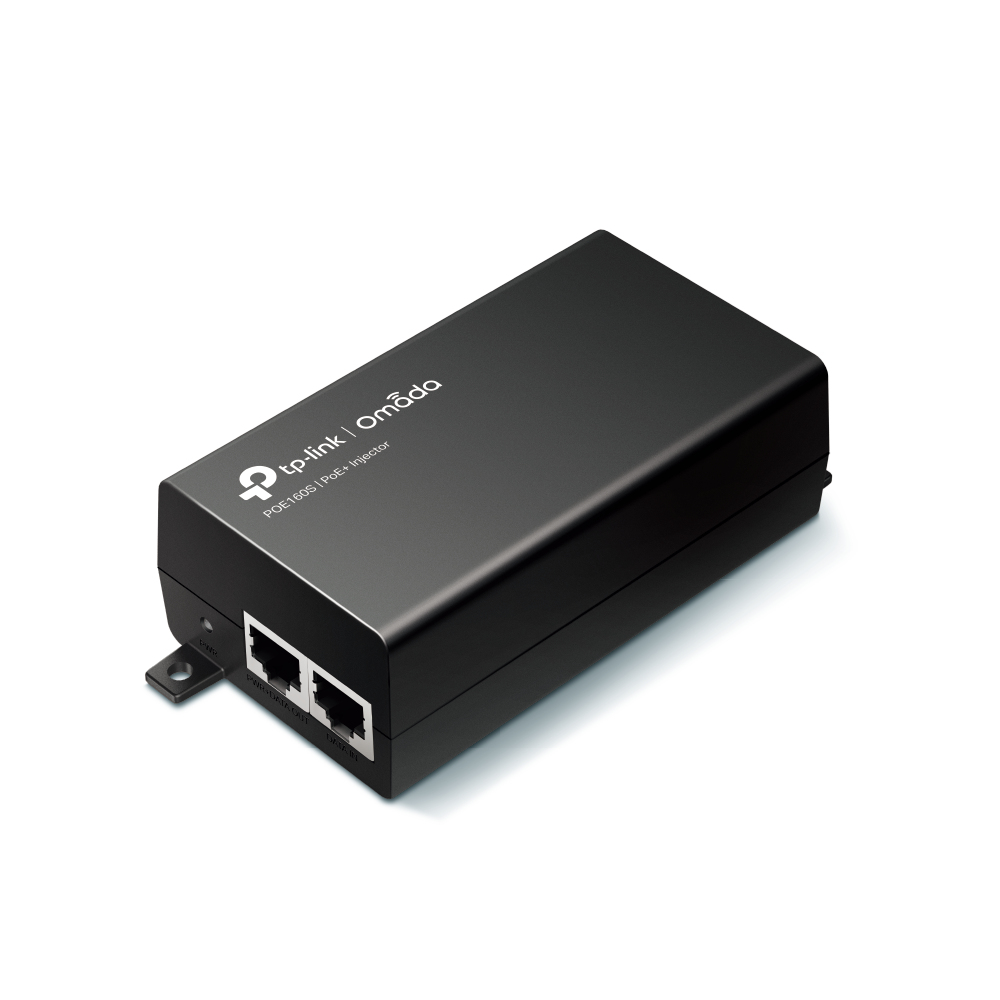

TP-LINK TL-POE160S POE INJECTOR
Introduction

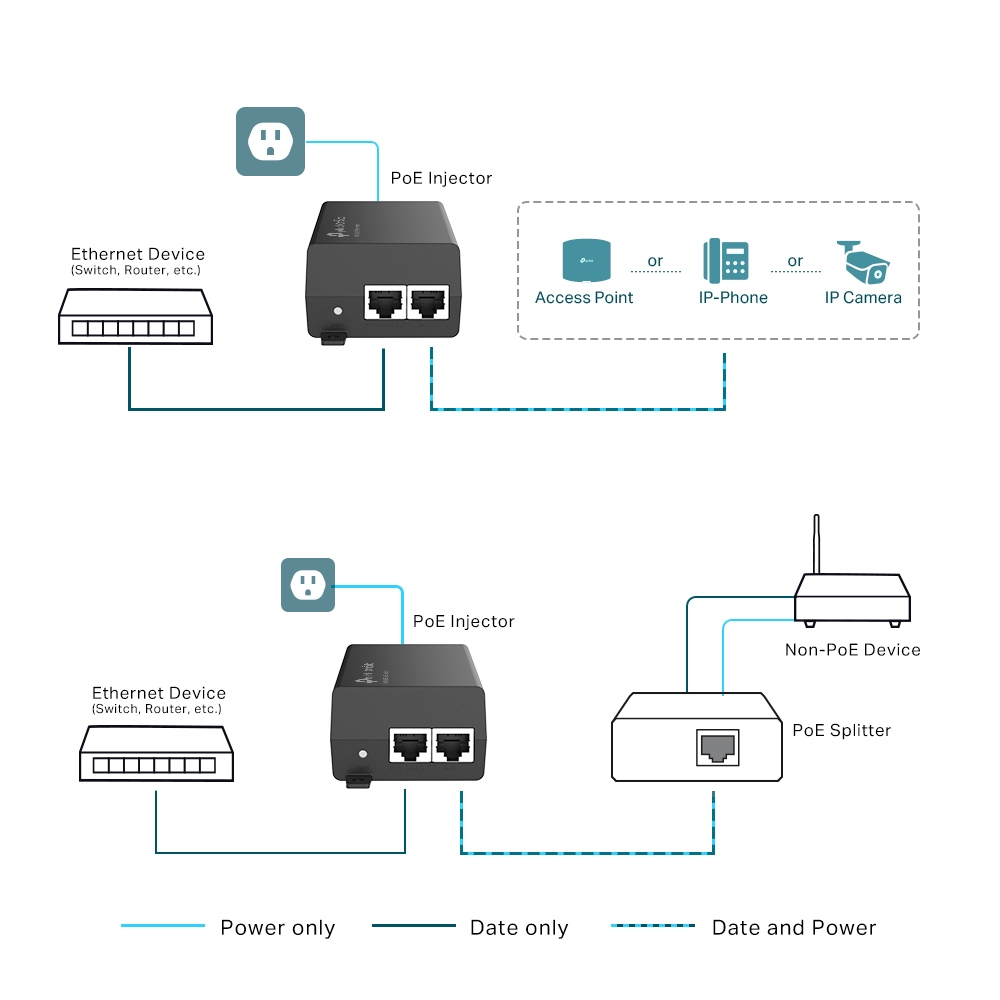

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Features | |
| Wall mountable | Yes |
| Plug and Play | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| LED indicators | Power |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Package type | Box |
| Ports & interfaces | |

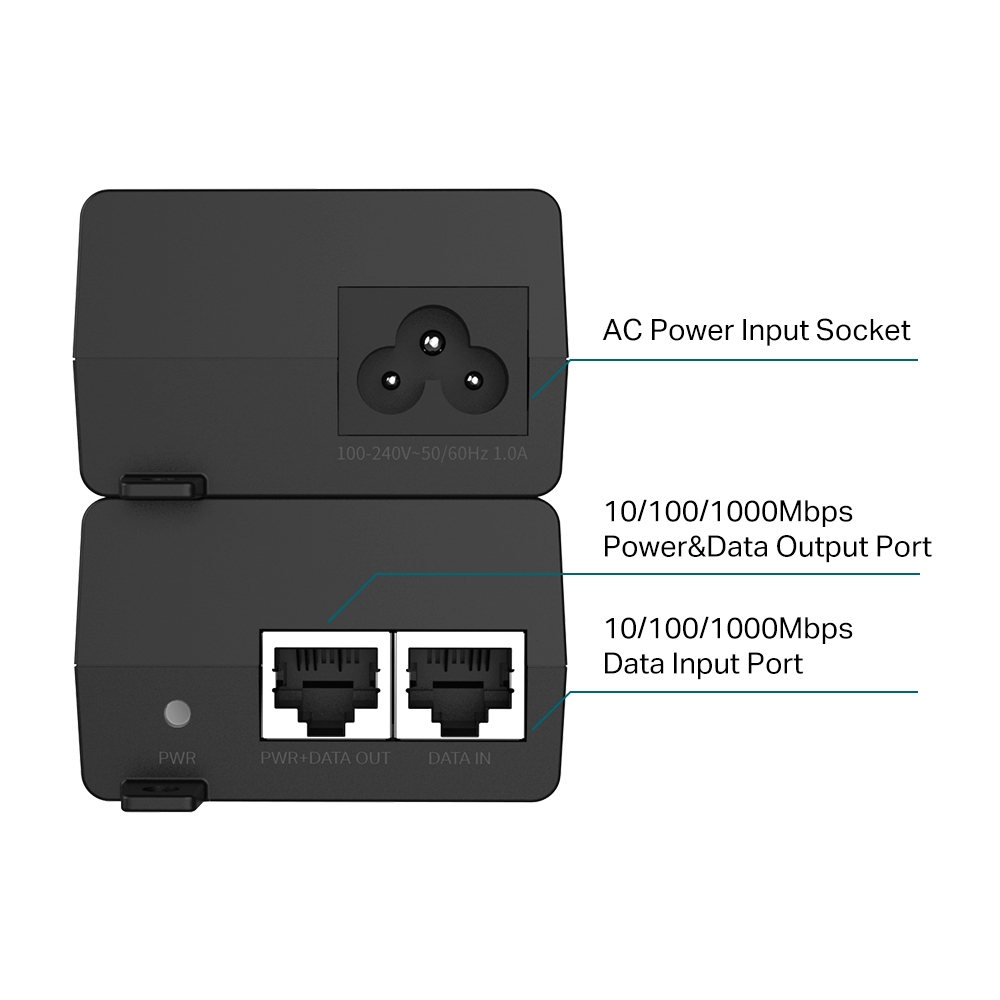

| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |

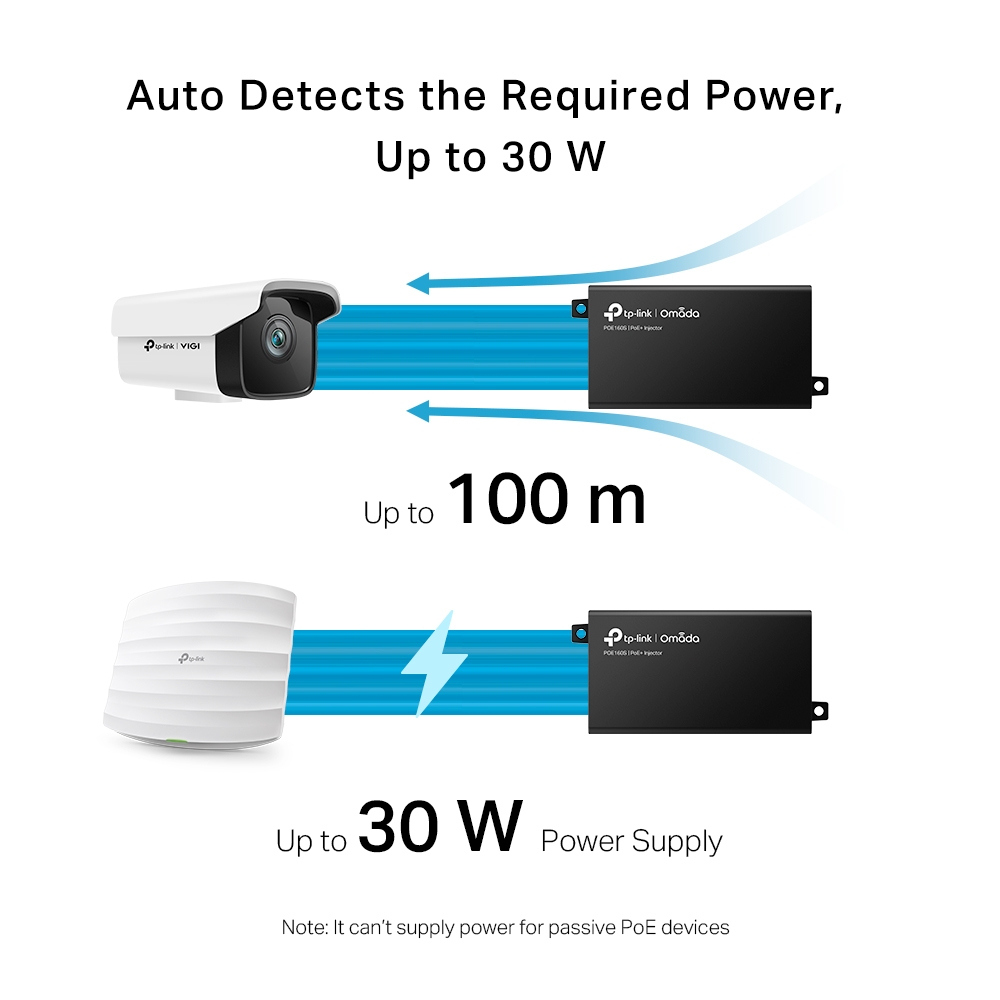

| Output power | 30 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 59.4 mm |
| Height | 36.8 mm |
| Package weight | 460 g |
| Package depth | 230 mm |
| Package width | 170 mm |
| Package height | 80 mm |
| Packaging content | |
| Power cord included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Package type | Box |
| Packaging data | |
| Package weight | 460 g |
| Package type | Box |
| Package depth | 230 mm |
| Package width | 170 mm |
| Package height | 80 mm |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 170 mm |
| Package height | 80 mm |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Indication | |
| LED indicators | Power |
