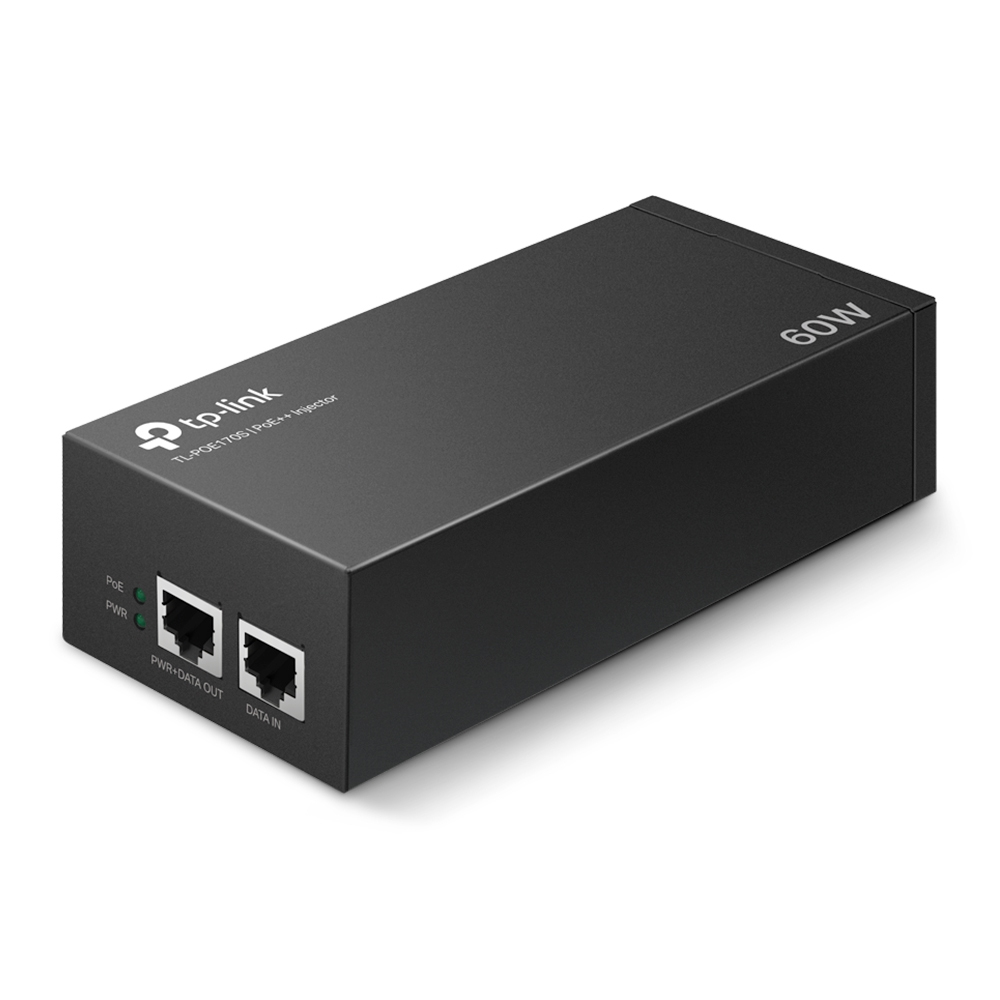

TP-LINK TL-POE170S POE INJECTOR
Introduction
What This Product Does

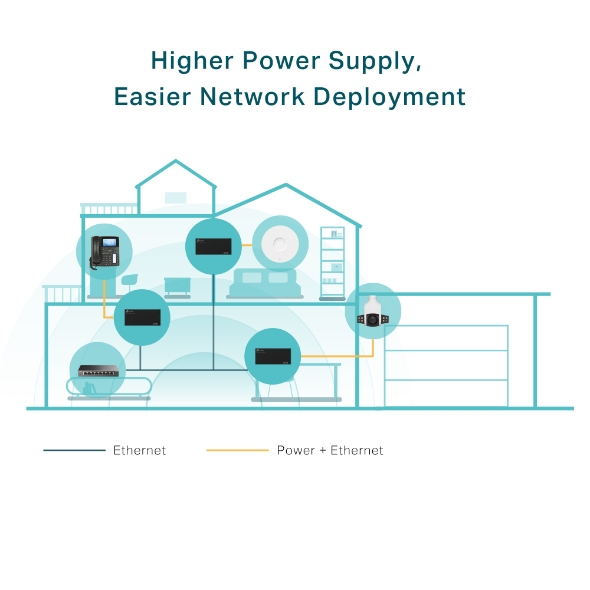

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000 |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Features | |

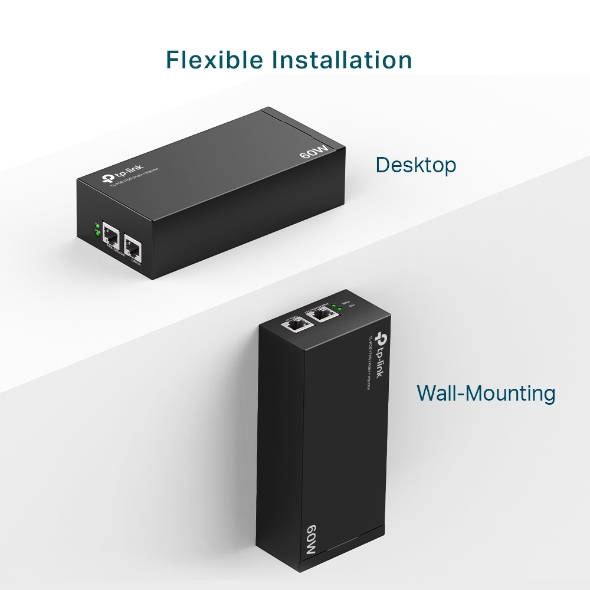

| Wall mountable | Yes |

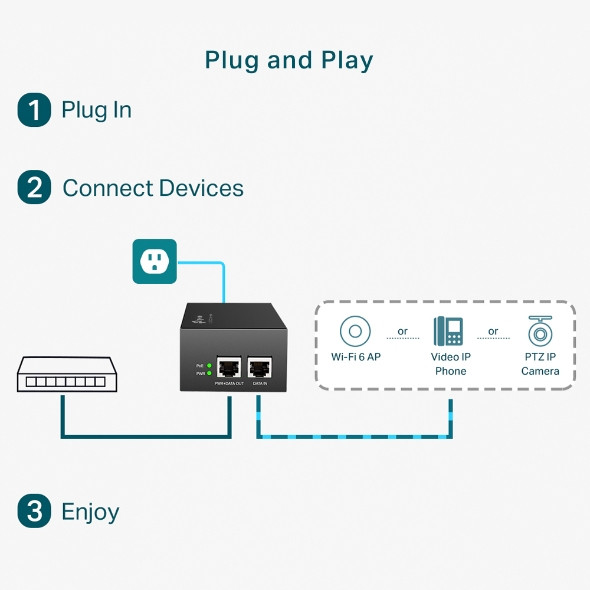

| Plug and Play | Yes |
| Product colour | Black |
| Housing material | Metal |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Package type | Box |
| Certification | FCC, CE, RoHS |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power | 60 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |

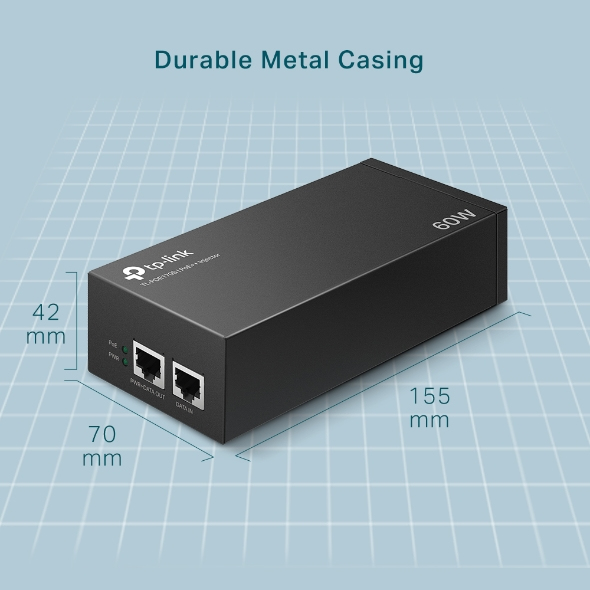

| Width | 155 mm |
| Depth | 70 mm |
| Height | 42 mm |
| Package weight | 920 g |
| Package depth | 250 mm |
| Package width | 190 mm |
| Package height | 95 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
| Package type | Box |
| Packaging data | |
| Package weight | 920 g |
| Package type | Box |
| Package depth | 250 mm |
| Package width | 190 mm |
| Package height | 95 mm |
| Technical details | |
| Number of products included | 1 pc(s) |
| Package width | 190 mm |
| Package height | 95 mm |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
